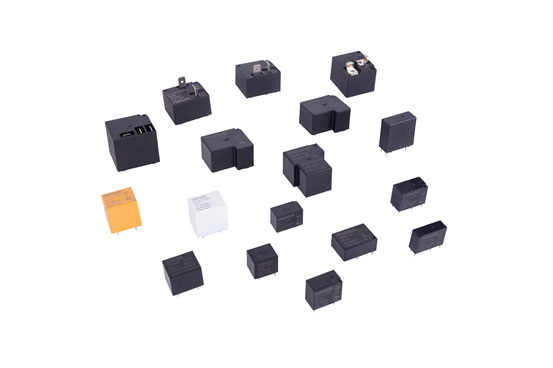

What is a power relay?

A power relay is an electrical switching device that controls the on-off of a high-power circuit through a low-power input signal. The core component of this relay is an electromagnet, when the electromagnet is energized, a magnetic field will be generated to attract a mechanical arm, thereby changing the contact state in the circuit to achieve the circuit opening and closing control.


Working principle

The working principle of power relays is based on the principle of electromagnetism. When a voltage or current is applied to the coil of a relay, the magnetic flux generated by the coil passes through a magnetic circuit consisting of a core, a yoke, an armature, and a working air gap in the magnetic circuit. Under the action of the magnetic field, the armature will be attracted to the pole surface of the core, driving the change of the contact state. When the input signal disappears or falls below a certain threshold, the mechanical reaction will make the armature return to the initial position, and the contact state will also be restored.

Advantages of power relays

1. Fast response: The power relay can respond quickly to the control signal and achieve the fast opening and closing of the circuit, which is crucial for the power system and automation equipment that need to switch quickly.
2. Stability: Under various environmental conditions, the power relay can maintain stable working performance, and is not affected by environmental factors such as temperature and humidity.
3. Long life: Due to the durability of its structure, power relays usually have a long service life, reducing the frequency of maintenance and replacement.
4. Small size: Compared with other types of relays, power relays are usually smaller in size and easy to install and integrate into various equipment.
5. Safety: Power relays isolate low-power control signals from high-power circuits, protecting operators and equipment from potential hazards and damage.
6. Remote control: Power relays are easy to achieve remote control equipment or systems, to achieve remote operation, which is particularly important for remote monitoring and automatic control.

Application field

Power relays are widely used in power protection, automation control, motion control, remote control, measurement and communication. Whether it is in the automation equipment on the industrial production line, or in the intelligent power management system in the home, we can find the figure of power relays.
In summary, power relays are an integral part of power systems and automation equipment. Its efficient, stable and safe features bring more convenience and security to our lives.
