The FH14HV power relay is the high-dielectric-strength version of the FH14 series, becoming an ideal choice for applications requiring higher dielectric withstand voltage due to its excellent performance and higher safety.

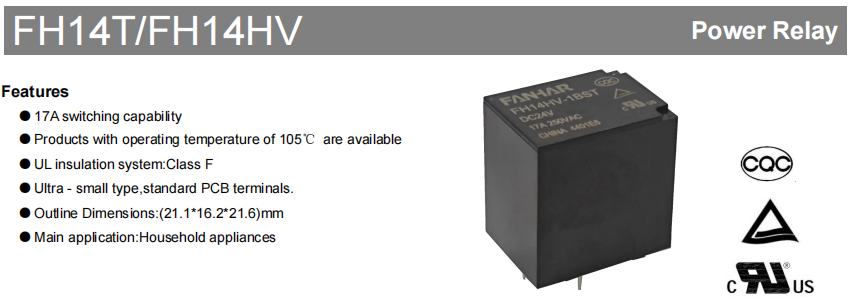

Features of FH14HV Power Relay

High Switching Capability: The FH14HV relay also has a contact switching capability of 17A, suitable for moderate current environments.

High Dielectric Withstand Voltage: The dielectric withstand voltage between the coil and contacts reaches 3500V, providing a higher level of safety.

UL Insulation Class: Class F insulation, meeting strict safety requirements.

Eco-Friendly Product: Compliant with RoHS standards, environmentally friendly and reliable.

Compact Size: (21.1×16.2×21.6)mm, facilitating easy installation and integration.

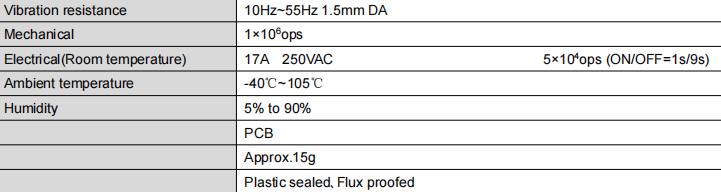

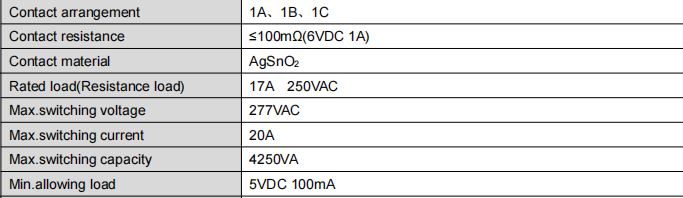

Product Parameters

Contact Arrangement: 1A (1 normally open contact), 1B (1 normally closed contact), 1C (1 switched contact).

Rated Load: 17A 250VAC.

Insulation Resistance: 100MΩ (500VDC).

Dielectric Withstand Voltage: Between open contacts 1000VAC for 1 minute; between contacts and coil 3500VAC for 1 minute.

Operation/Release Time: ≤15 ms for operation, ≤10 ms for release.

Temperature range: -40°C to 105°C.

Between 5% and 90% humidity.

Range of Applications

Due to its stable operation and great reliability, the FH14HV power relay is a popular choice for control and safety in fields which need greater dielectric withstand voltage, such as industrial control and home appliances.

Precautions

Anti-Drop: To maintain the product's initial performance parameters, avoid dropping it or exposing it to external impacts.

Voltage Requirements: Ensure that the excitation voltage reaches the rated value, and it is recommended that the actual driving voltage be one to one and a half times the rated voltage.

Environmental Adaptability: Flux-proof types are recommended for clean environments, while plastic-sealed types are advised for polluted environments.

Choosing FH14HV means choosing a higher dielectric withstand voltage and reliable power control solution.
