Power relay performance is essential to the stability and effectiveness of modern industrial automation and smart home systems. W11 relays are the desirable option for power management in 5G communication, smart homes, and industrial control because of their exceptional performance and dependability.The W11 relay's features and advantages are thoroughly explained in the description that follows.

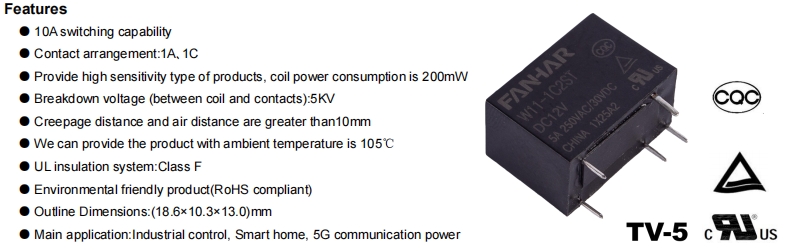

Product Features:

10A switching capability: the W11 relay is capable of handling current loads up to 10A for a wide range of industrial and home applications.
High Breakdown Voltage: 5KV breakdown voltage (between coil and contacts) ensures extreme safety and reliability.
High Sensitivity: Offers high sensitivity products with coil power consumption as low as 200mW and fast response time.
Eco-friendly design: RoHS compliant, eco-friendly and environmentally friendly.
Compact size: Small form factor (18.6 x 10.3 x 13.0mm) for easy integration into various devices.

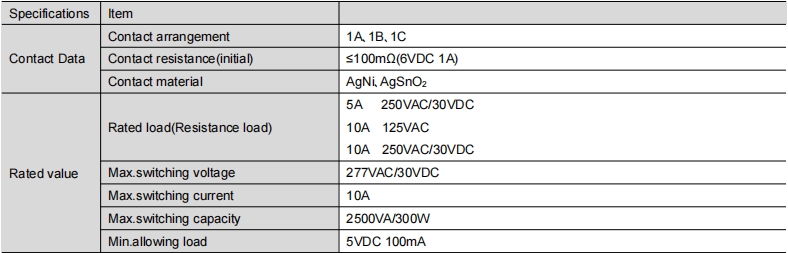

Product Parameters:

The contacts: 1A - normally open, 1C - a set of conversion for different circuit design requirements.
Contact resistance: The initial value does not exceed 100mΩ (6VDC 1A), thus allowing efficient current transfer.
The materials that will be in contact: AgNi, AgSnO2 have been used for good conductivity and durability.
Rated load: 5A 250VAC/30VDC, 10A 125VAC, maximum switching voltage 277VAC/30VDC, maximum switching current 10A, maximum switching capacity 2500VA/300W, minimum permissible load 5VDC 100mA.

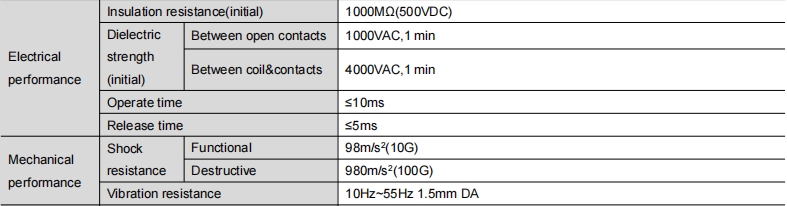

Performance overview:

Insulation resistance: initial value up to 1000MΩ (500VDC), providing strong electrical isolation.
Dielectric Withstanding Voltage: 1000VAC,1 minute between disconnecting contacts, 4000VAC,1 minute between coil and contacts.
Action time: operation time is no more than 10ms, release time is no more than 5ms, ensuring fast response.
Mechanical performance: able to withstand up to 98m/s² (10G) stability and 980m/s² (100G) strength, as well as 10Hz ~ 55Hz 1.5mm double amplitude vibration test.
Durability: mechanical life up to 1 x 10^6 operations, electrical life up to 1 x 10^5 operations under specific conditions (ON/OFF = 1s/9s).

Range of applications:

Industrial control: for controlling motors and other mechanical devices on production lines.
Smart home: to provide stable current control in smart home appliances.
5G communication power: to provide efficient current switching in 5G base station power management.

The W11 relay is an ideal choice for industrial control and smart home devices, with its high performance and wide application range. Whether operating in extreme temperatures or handling high current switching, the W11 provides stable and safe solutions. For more details, reach out to our representatives, who will assist you in choosing the relay model that best fits your application. Together, let's work towards a smarter and more reliable future in intelligent control.
