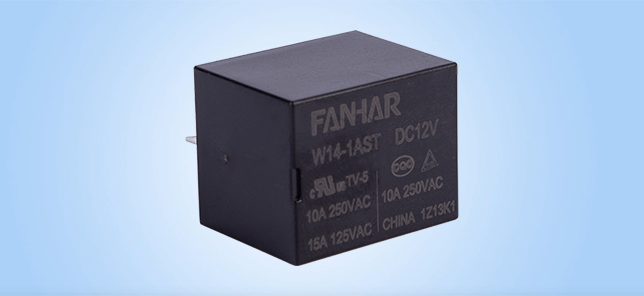

Fanhar W14 Power Relay
Views: 972  Author: Fanhar Relay  Time: 2025.02.06



In today's increasingly intelligent smart homes and household appliances, the performance and reliability of power relays, which are vital components in managing current, are critical to ensuring steady operation of the equipment.W14 relays, with their compact shape and high performance, offer a dependable current management solution for household appliances and smart home systems. The W14 relay is described in full below, so you can comprehend all of its features and benefits.



Product Features Overview


15A switching capability: the W14 relay is capable of handling current loads of up to 15A, making it easy to cope with the demands of home and smart devices.

High Temperature Stability: It maintains stable operation even in high temperature environments up to 105°C, ensuring the reliability of home devices in a variety of conditions.

Environmental Compliance: Compliant with the international IEC60335-1 standard and RoHS environmental standards, the W14 relay offers high performance with environmental responsibility.

Compact Size: With a form factor of (19.2 x 15.5 x 15.0) mm, it is easy to integrate into a variety of smart home devices.



Highlights of the technical specifications


Contact configuration: provide 1A (normally open), 1B (normally closed), 1C (conversion) contact form, flexible to adapt to different circuit design.

Low contact resistance: High current transmission efficiency is ensured by an initial contact resistance of no more than 100mΩ (6VDC 1A).

High-efficiency contact material: AgSnO2 material is used to ensure excellent conductivity and long-term durability of the contacts.

Wide range of load ratings: Supports 10A 250VAC/30VDC and 15A 125VAC control loads to meet diverse household electrical needs.





Performance & Durability


High insulation resistance: 1000MΩ (500VDC) insulation resistance provides strong electrical isolation protection for home circuits.

Strong dielectric withstand voltage: able to work stably under 750VAC and 1500VAC dielectric withstand voltage to protect home electrical safety.

Fast response: the suction time is no more than 10ms and the release time is no more than 5ms, realising instant response for home automation control.

Durable mechanical performance: after 1×10^6 times of mechanical operation durability test, ensuring the long-term stable operation of the product.


Wide range of application scenarios


W14 relays have great potential for application in the field of household appliances and smart home, whether it is intelligent lighting system, home security, or automated kitchen equipment, W14 can provide accurate current control and reliable performance guarantee.



Conclusion


Zhejiang Fanhar W14 relay, with its sophisticated design and reliable performance, has become the ideal choice for modern home intelligent upgrade. By choosing W14, you are choosing a powerful partner that can enhance the level of home intelligence and ensure home electrical safety. Learn more about W14 relay, let our professional team help you to open a new chapter of intelligent home life together.
