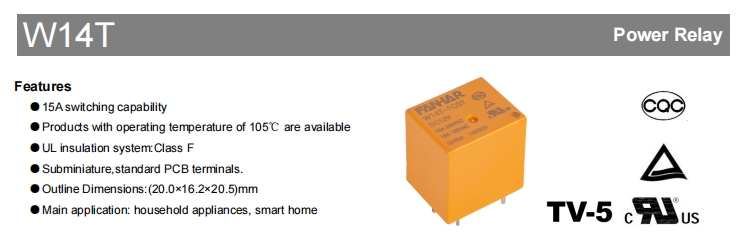

FANHAR W14T is a small power relay that is suitable for smart devices and home appliances with a reputation of being highly reliable and durable. Manufactured by Zhejiang FANHAR Electronics Co., Ltd., the relay combines innovative contact material and sealing technologies to support a broad range of harsh conditions, making it a go-to choice to operate devices with a lot of power
15A High Load: Supports up to 15A current switching to control high power appliances such as air conditioners and washing machines.
Wide voltage compatibility:The maximum switching voltage is 277VAC/30VDC, which meets a wide range of power supply requirements.
Ultra-long life: Mechanical life up to 10 million times, electrical life up to 100 million times (under low load), to ensure long-term stable operation.
High-temperature resistant design: support -40°C to 105°C working temperature, adapt to harsh environments.
With an insulation resistance of 100MΩ and a voltage resistance of 1500VAC, the UL Class F insulation system satisfies worldwide safety regulations.
Eco-friendly sealing method: For clean or polluted environments, Flux Proofed and Plastic Sealed variants are offered.
Miniature size: Only 20.0 x 16.2 x 20.5mm, saving space.
PCB terminal design: Supports standardised circuit board soldering, simplifying the installation process.

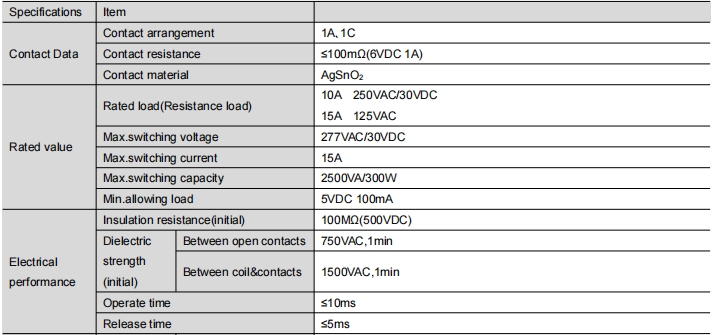

AgSnO₂ silver tin oxide contacts: contact resistance ≤ 100mΩ, reducing energy loss and extending service life.
Fast response: Suction time ≤ 10ms, release time ≤ 5ms, precise control of circuit on/off.

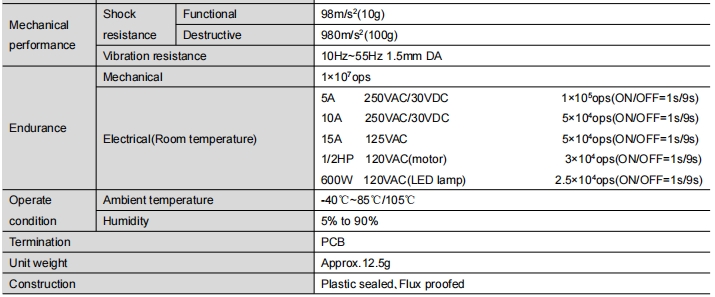

Shock and vibration resistance: Passed 98m/s² (functional level) and 980m/s² (destructive level) impact tests, suitable for mobile devices.
Dust and corrosion resistant: Plastic sealed models are resistant to H₂S, SO₂ and other gases, suitable for industrial scenarios.
Smart home: intelligent lamps and lanterns, temperature control system, circuit control of security equipment.
Household appliances: power management modules for refrigerators, microwave ovens, washing machines.
Industrial equipment: safety switches for automated production lines, motor control, and LED lighting systems.

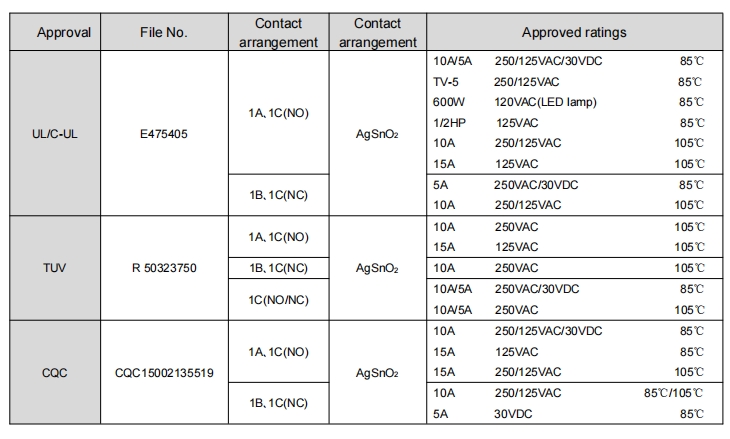

International Certification: Passed UL, TUV, CQC and other authoritative certificates to meet global safety standards.
Rigorous testing: including 750VAC contact voltage withstand test, high temperature durability verification (105°C continuous operation), etc.
Recommendations for use: Avoid dropping to maintain performance, select a sealed model according to the environment.
Cost-effective: Industrial-grade performance in a lightweight 12.5g design.
Flexible Adaptation: Supports 1A (usually open) and 1C (changeover contact) configurations to meet diverse circuit requirements.
Long-term Reliability: Combines 10-year mechanical life and strict quality control to reduce equipment maintenance costs.
With its high performance, high safety and wide applicability, the FANHAR W14T relay has become the component of choice for smart home upgrades and appliance manufacturing. Whether engineers are designing circuits or consumers are looking for device stability, this relay provides a reliable power control solution.
