FH21L-60 Latching Relay
Views: 770  Author: Fanhar Relay  Time: 2025.05.26

The FH21L-60 is a high performance latching relay designed for smart meters, compound switches and new energy applications. This environmentally friendly relay in accordance with IEC62055-31:2005 UC2 is the ideal solution for demanding electrical applications with its excellent 80A switching capability and compact size.

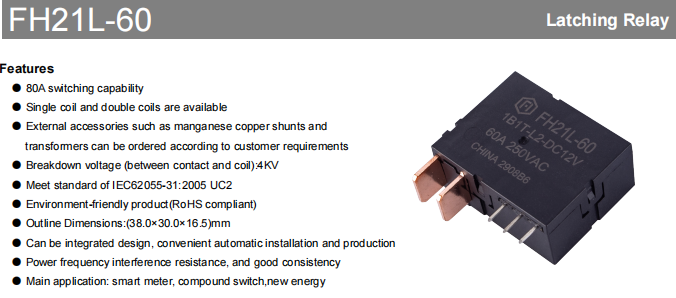

Core Benefits and Features


Superior Electrical Performance

High current handling: Maximum switching current 80A, rated load 60A 250VAC

Low contact resistance: Initial contact resistance ≤ 1.0mΩ (6VDC 1A) to ensure high performance transmission

Strong insulation: 4KV between contact and coil, 2000VAC for 1 min. between open contacts

Fast Response: Closing/disconnecting time are ≤ 20ms


Flexible Design Options

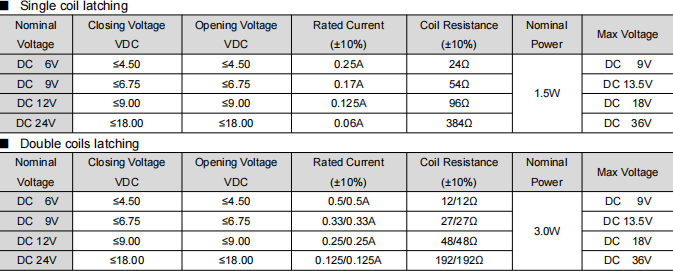

Single and dual coil versions available to meet different control requirements

Multiple Mounting Options: Type A and B PCB mounting options available

Customised Accessories: External accessories such as manganese copper shunts and transformers can be supplied on request


Reliability and Durability

Long Mechanical Life: Up to 100,000 operations

Electrical Durability: 5,000 operations (COS) at 60A 250VAC (Cos) operation (COSφ=1) under 60A 250VAC condition and 10,000 times of total testing

Severe Environmental Adaptation: Operating Temperature Range -40℃~85℃, Humidity 5%~85%RH

Anti-Interference Design: Excellent Anti-Power Frequency Interference Resistance and Good Consistency

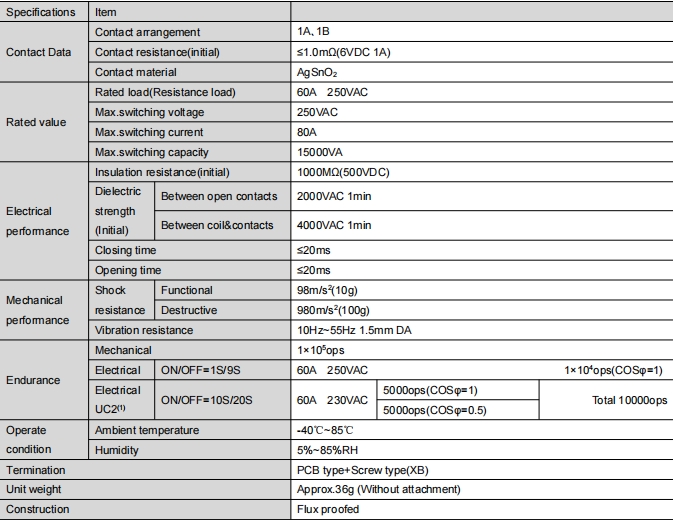

Technical Specification Details



Application Areas


The FH21L-60 Relay is particularly suitable for:

Smart Metering Systems: Precise Control of Power Distribution

New Energy Devices: Solar Power Inverters, Wind Power Generation Systems New energy equipment: solar inverters, wind power generation systems

Composite switching applications: high reliability switching requirements

Smart home systems: DIN-rail mounting solutions

Industrial automation: control circuits with excellent immunity to interference


Precautions


To ensure optimal performance, it is recommended that the actual drive voltage be 1~1.5 times the rated voltage and the pulse width be ≥50ms

Avoid energising both the "open" and the "closed" coils at the same time

Load terminal is not suitable for reflow soldering or wave soldering. Load terminals are not suitable for reflow, wave or tin soldering, spot soldering is recommended.

Relay status may change during transport or installation, reset as necessary before use.

For more technical details or customisation requirements, please contact Fanhar's professional team for technical support.

Choose the FH21L-60 magnetic retention relay for a reliable, efficient switching solution for your smart meter and new energy applications!
