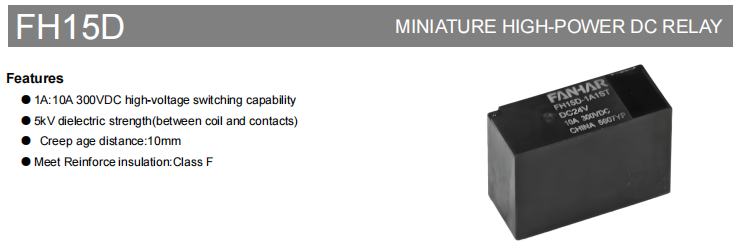

The FH15D is a compact, high-capacity relay designed primarily for high-voltage DC applications. Exceptional switching performance, enhanced insulating safety, and compact PCB mounting dimensions are expertly integrated. It offers dependable and secure circuit management solutions, making it an excellent choice for demanding industries like power systems, renewable energy, industrial control, and communication equipment.
High-Voltage, High-Power Switching:
Capable of switching 10A @ 300VDC resistive loads with a maximum switching capacity of 3000W, effortlessly meeting the stringent demands of high-voltage DC environments.
Ultra-High Insulation Safety:
This insulation satisfies the advanced protection requirements for F-class personnel and equipment with a dielectric strength of 5 kilovolts and a creepage distance of 10 mm between the coil and contacts.
High-Reliability Contact:
Utilizes AgSnO₂ (Silver Tin Oxide) contact material with low contact resistance (≤100mΩ) and strong arc erosion resistance, ensuring extended lifespan and stable contact performance.
Dual Encapsulation Options:
Flux-Proofed: Fit for hygienic production environments.
Plastic-sealed: Suitable for harsh conditions, it effectively withstands dangerous gases and particulate contamination.
Broad Environmental Adaptability: Operating temperature range of -40°C to +85°C and humidity range of 5% to 85%, ensuring consistent performance in diverse challenging conditions.

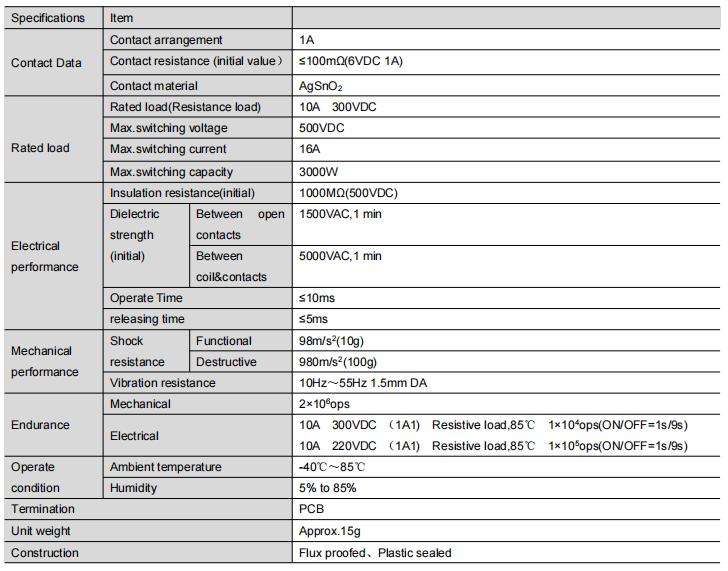

Contact Arrangement: 1A
Electrical Life: Over 100,000 operations at 85°C, 10A@300VDC.
Mechanical Life: Up to 2 million cycles, demonstrating excellent mechanical durability.
Response Speed: Operating time ≤10ms, release time ≤5ms, guaranteeing swift responsiveness.
Insulation Performance: Insulation resistance is greater than or equal to 1000 MΩ (500 VDC).
Vibration and Shock Resistance: Superior mechanical stability, enduring vibrations ranging from 10Hz to 55Hz at 1.5mm and shocks up to 980m/s².
The FH15D offers multiple rated coil voltages, including DC 5V, 6V, 9V, 12V, 18V, and 24V.
This relay is highly suitable for the following equipment and systems:
Photovoltaic inverters, Energy Storage Systems (ESS)
Electric vehicle charging equipment
Industrial automation control systems, PLC modules
Communication base station power supplies, Power Distribution Units (PDUs)
Medical equipment, Test and measurement instruments

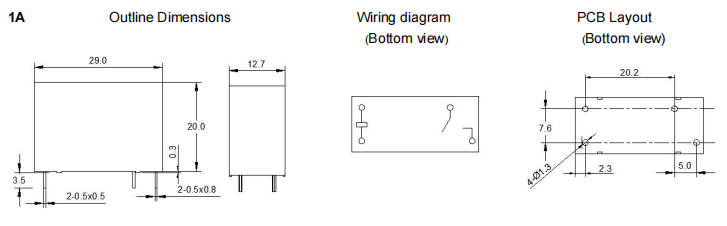

PCB Configuration and Separation: The product incorporates magnetic components. To avert reciprocal interference that may induce parameter alterations or soldering complications, ensure a minimum separation of ≥20mm for adjacent installations and ≥25mm for staggered configurations.
A varistor should be installed in parallel across the coil terminals to mitigate the surges that are induced.Select a varistor with a voltage rating that is approximately three times the rated voltage of the coil.
Environmental Precautions: It is recommended to refrain from operating in areas with strong magnetic fields, as this may impede the ability to extinction arcs and impact the engagement/release parameters.
Polarity Note: Contact terminals are non-polar, but coil terminals require polarity.If the coil voltage is sustained or diminished during operation, the positive terminal must be linked to the specified pin.
Management Safety Measures: Exercise caution and refrain from dropping the product to maintain its original performance specifications.
The FH15D relay stands out as a star product for high-voltage DC control applications, combining miniature size, robust power handling, and high reliability. It meets your high standards, whether you care most about safety, a longer lifespan, or being able to adapt to different environments.
