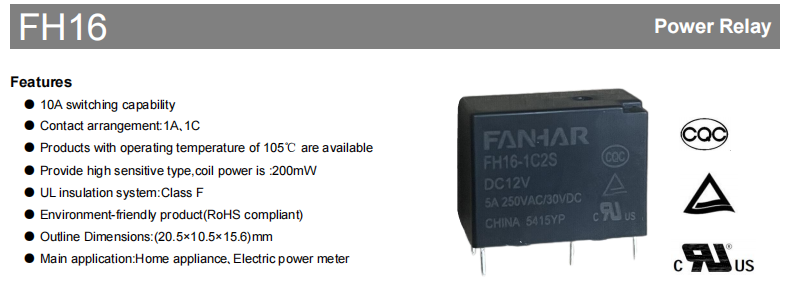

FH16 Power Relay
Views: 589  Author: Fanhar Relay  Time: 2025.09.25

The FH16, a small, high-performance power relay made especially for energy metering devices, home appliances, and other automation control systems, has been announced by Zhejiang Fanhua Electronics Co., Ltd.  In addition to its high-current switching capacity of 10 A, this relay offers excellent insulation properties, high sensitivity and reliable environmental adaptability. This guarantees reliable performance, even under the most challenging circumstances.

Thanks to its compact dimensions (20.5 × 10.5 × 15.6 mm) and multiple contact configurations (1A, 1B and 1C), the FH16 can adapt flexibly to a variety of circuit requirements, making it the perfect choice for modern electronic control systems.



Core Features


Elevated Switching Capacity: Accommodates 10A at 250VAC/30VDC loads with a peak switching power of 2500VA/300W.

Diverse Contact Configurations: Offers 1A, 1B, and 1C contact options to meet various design requirements.

High-Sensitivity Version Available: Energy efficiency is improved by low coil power consumption of up to 200mW.

High-Temperature Resistance: Rated for operation at temperatures of up to 105°C, making it suitable for challenging settings.

Premium Insulation System: UL-certified Class F insulation ensures long-lasting operating stability.

Environmental Compliance: Adheres to RoHS criteria for ecological safety.

Reliable Packaging: Available in flux-proof or plastic-sealed options for diverse environmental requirements.

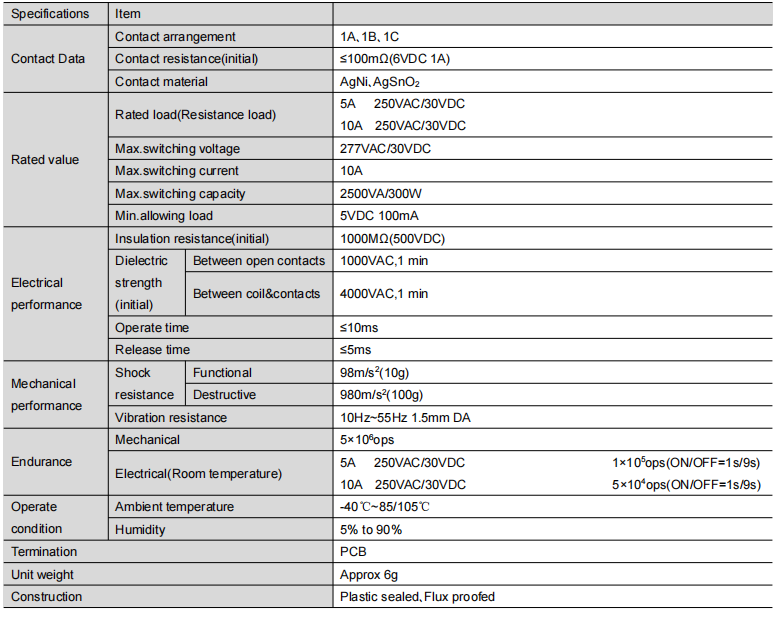

Technical Specifications Overview

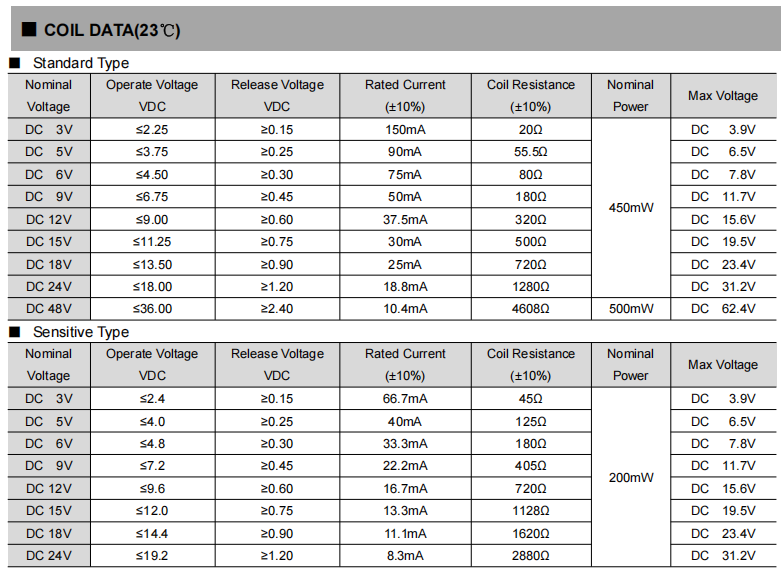

Coil Specifications


FH16 provides ordinary and high-sensitivity coil topologies, accommodating rated voltages ranging from DC 3V to 48V to fulfil various control circuit specifications.  The high-sensitivity variation is especially appropriate for low-power applications.



Typical Applications


Home Appliances: Energy regulation for air conditioners, refrigerators, washing machines, etc.

Energy Metering Devices: Electric meters, sub-meters, intelligent power management systems

Industrial Control: Automation apparatus, low-voltage power switching

Renewable Energy and Power Systems: Distributed energy management, energy storage technologies

Alternative Electronic Control Systems: Applications necessitating compact, high-reliability switching



Product Advantages


Compact Dimensions, Elevated Power Attains a switching capacity of up to 10A within constrained area.

Elevated Safety 4000VAC coil-to-contact insulation strength, adhering to many international safety standards (UL, TUV, CQC certified).

Flexible Selection Choose from various contact configurations, packaging options, and coil power ratings based on environmental and load requirements.

Energy efficiency and eco-friendliness Thanks to its high-sensitivity design, this product uses minimal power and meets RoHS environmental standards.

Wide Application From home appliances to industrial control, the FH16 relay delivers reliable solutions.



Conclusion


The FH16 power relay delivers efficient, safe switching control solutions for home appliances, smart grids, industrial automation, and more through its high performance, reliability, and compact design. It has been certified by UL, TUV, CQC, and other international safety standards. This means that it can be used by different customers. It is a trusted key component in circuit design.
