Feature Description

●2 sets of 20A switching capability
●Single coil and double coils are all available
●Products with operating temperature of 105℃ are available
●The height of the product is 10mm,it is suit for flat mounting
●Breakdown voltage (between contact and coil):4KV
●The contact can withstand 750A 10ms short-circuit impulse current
●UL insulation system:Class F
●Environment-friendly product (RoHS compliant)

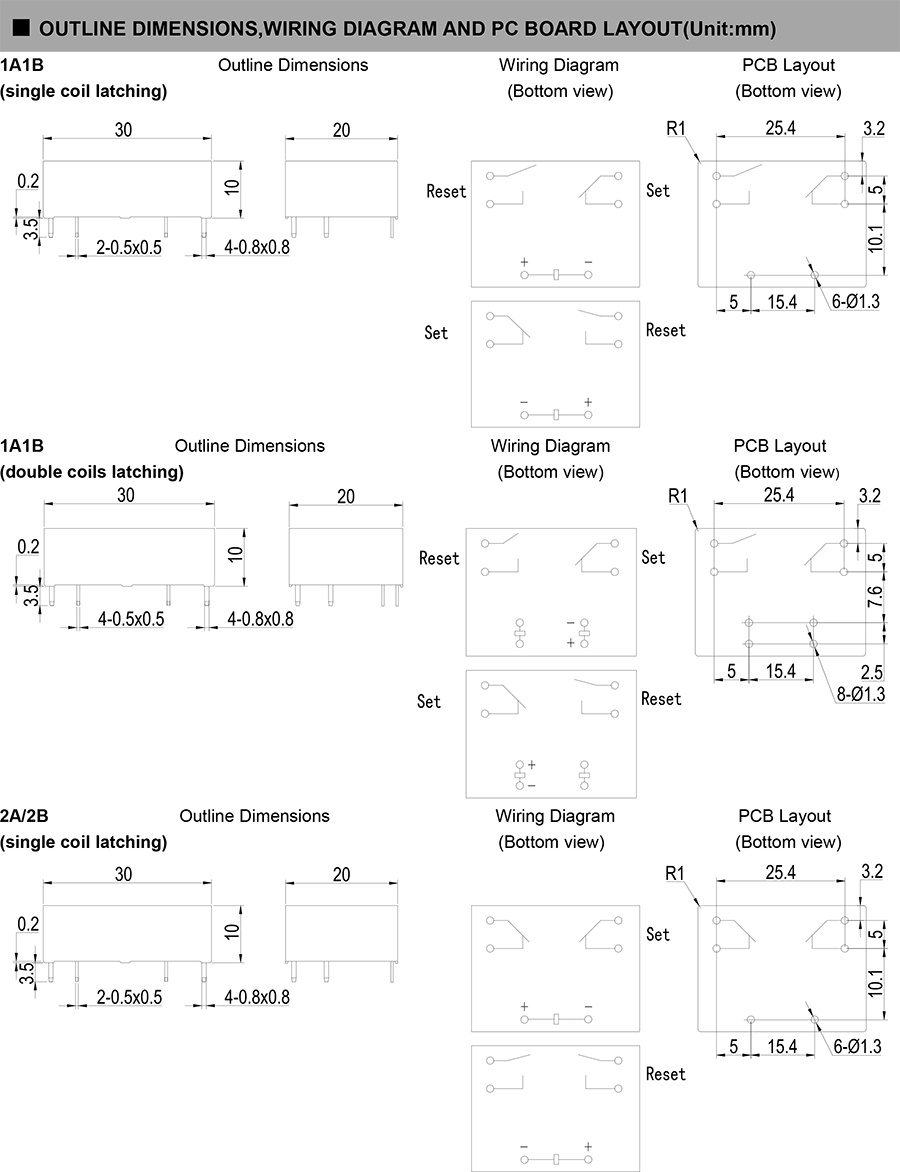

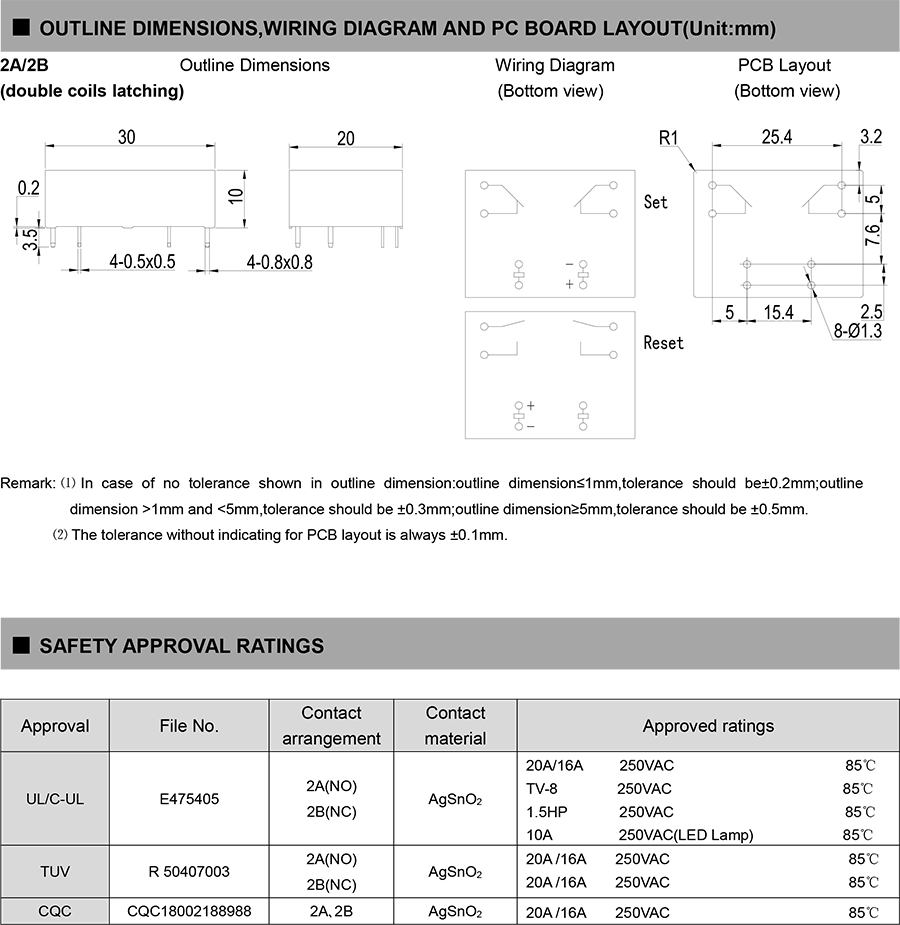

●Outline Dimensions:(30.0×20.0×10.0)mm
●Main application:Smart home､Smart Socket
