Feature Description

● 2 sets of 12A switching capability
● Breakdown voltage(between contact groups and contacts):2.5KV
● Breakdown voltage(between coil and contacts):5KV
● Creep age distance and air distance ≥15mm
● Products with operating temperature of 105℃ are available
● UL insulation system:Class F
● Environment-friendly product(RoHS compliant)

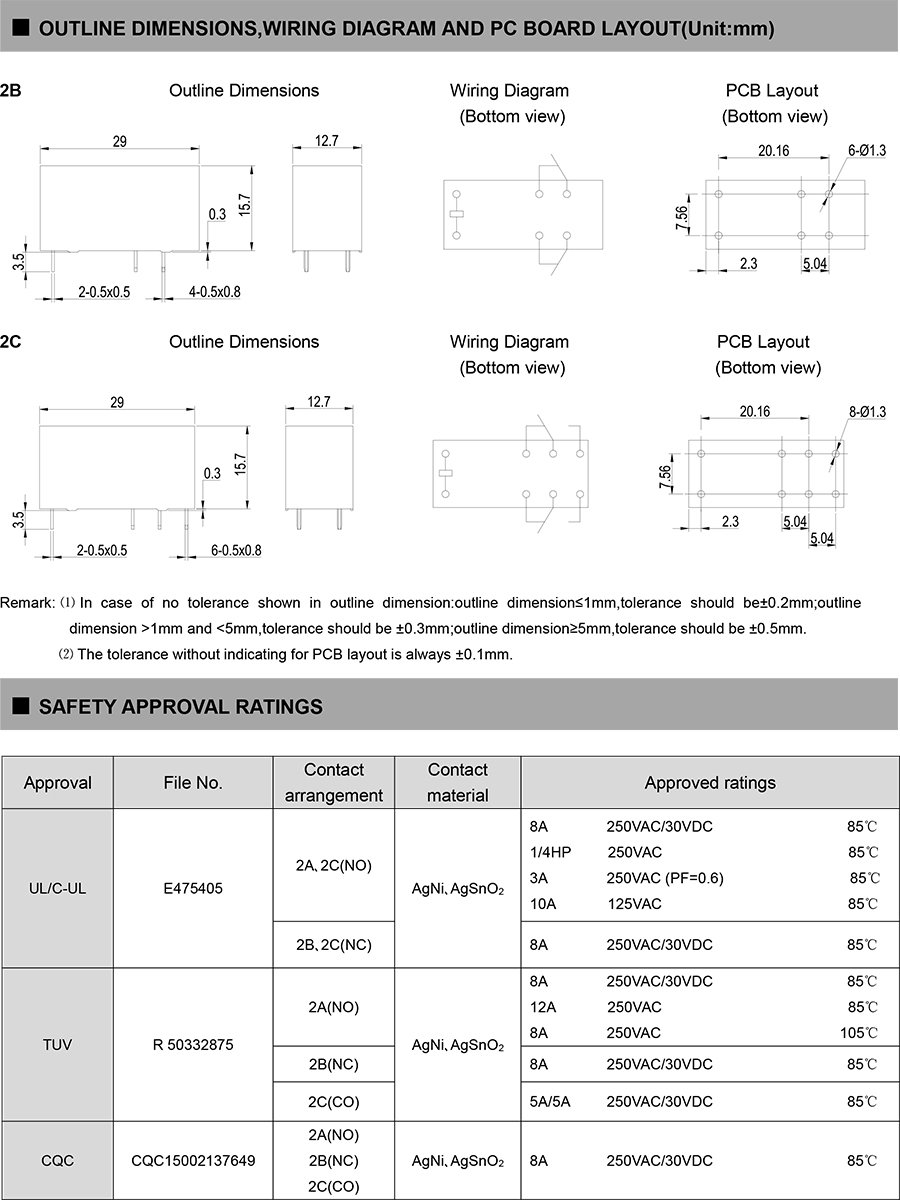

● Outline Dimensions:(29.0×12.7×15.7)mm
● Main application:Home appliance､Industrial Control
