Feature Description

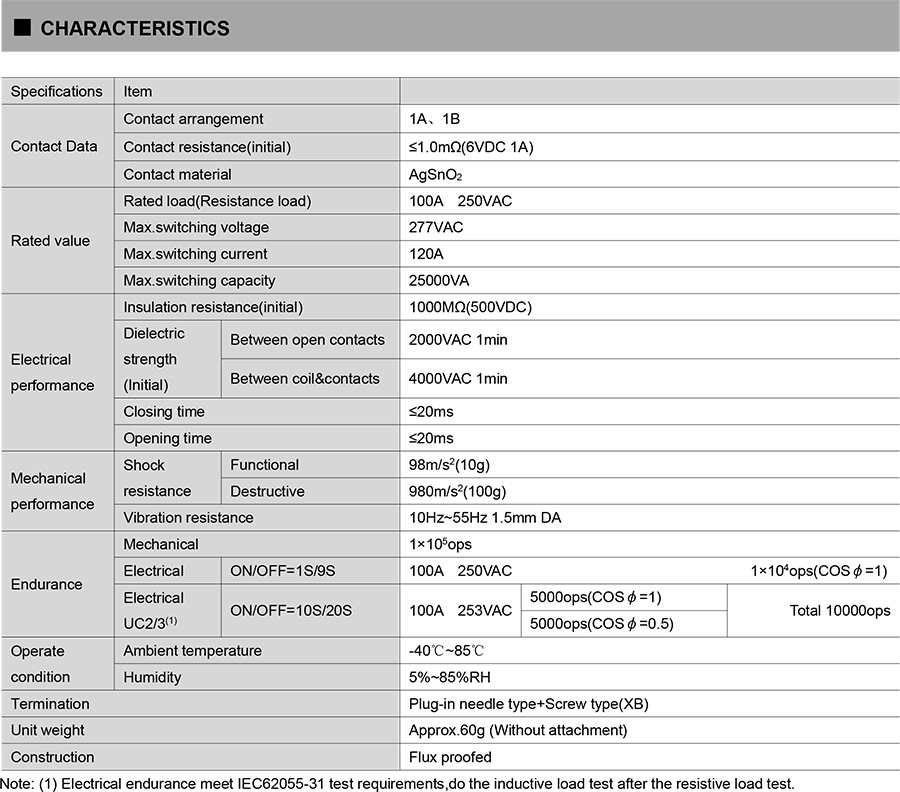

●120A switching capability

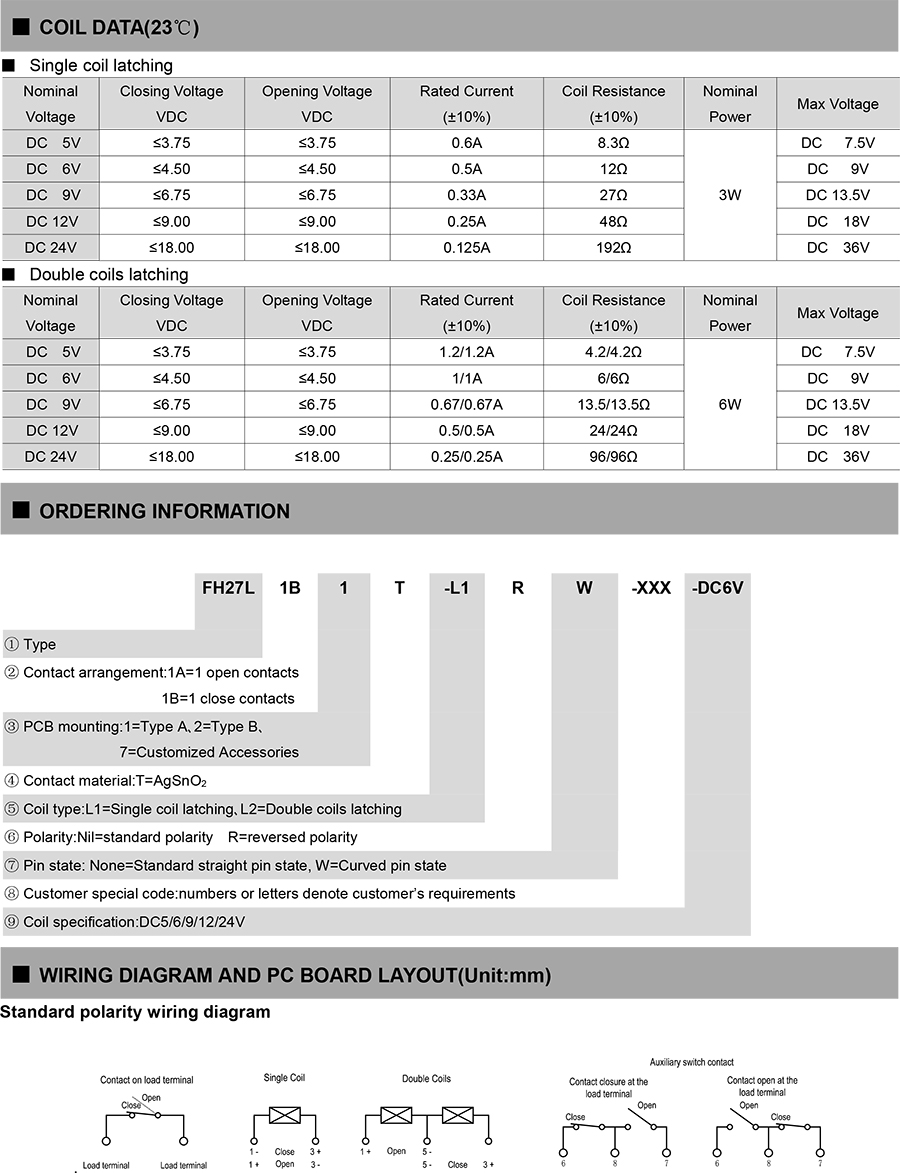

● Single coil and double coils are available

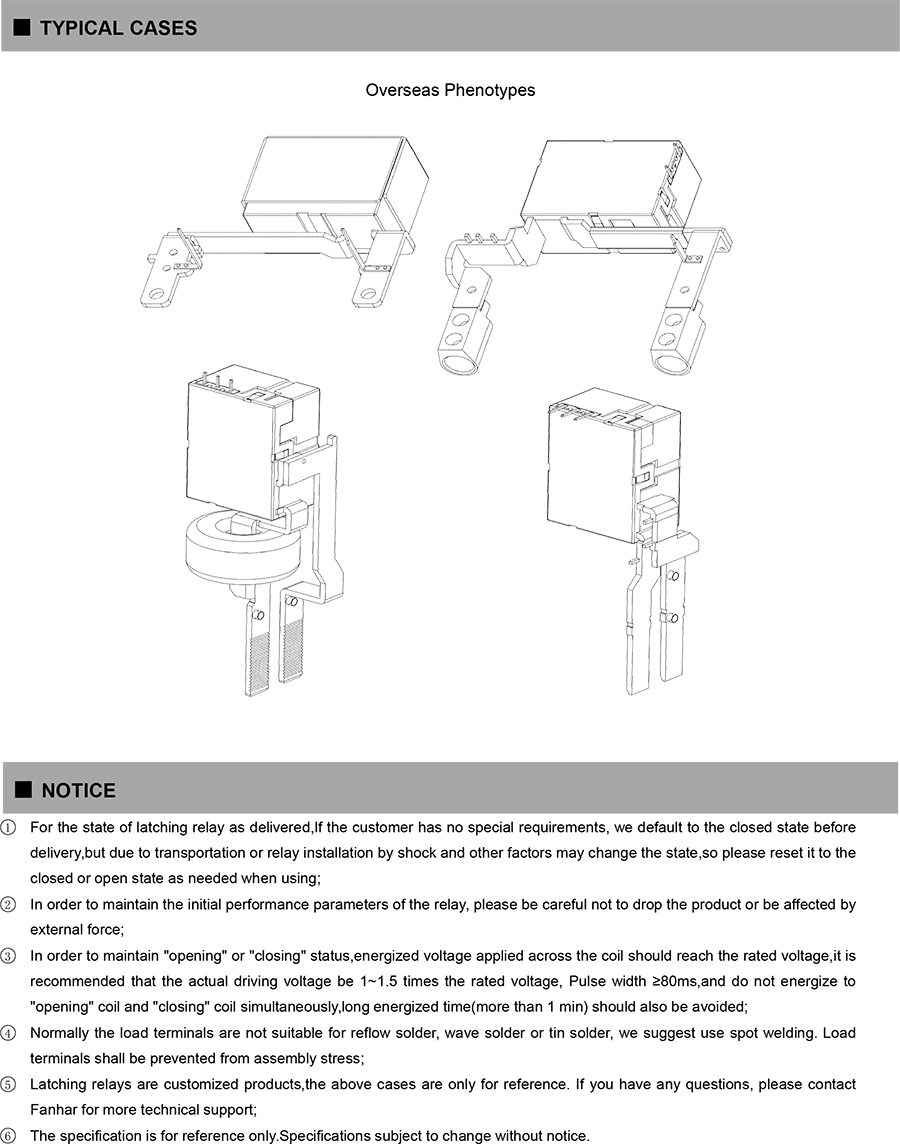

● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● Optional auxiliary contact,the status of synchronous or asynchronous contact with the load end is optional
● Breakdown voltage (between contact and coil):4KV
● Meet standard of IEC62052-31:2005 UC4
● Environment-friendly product(RoHS compliant)

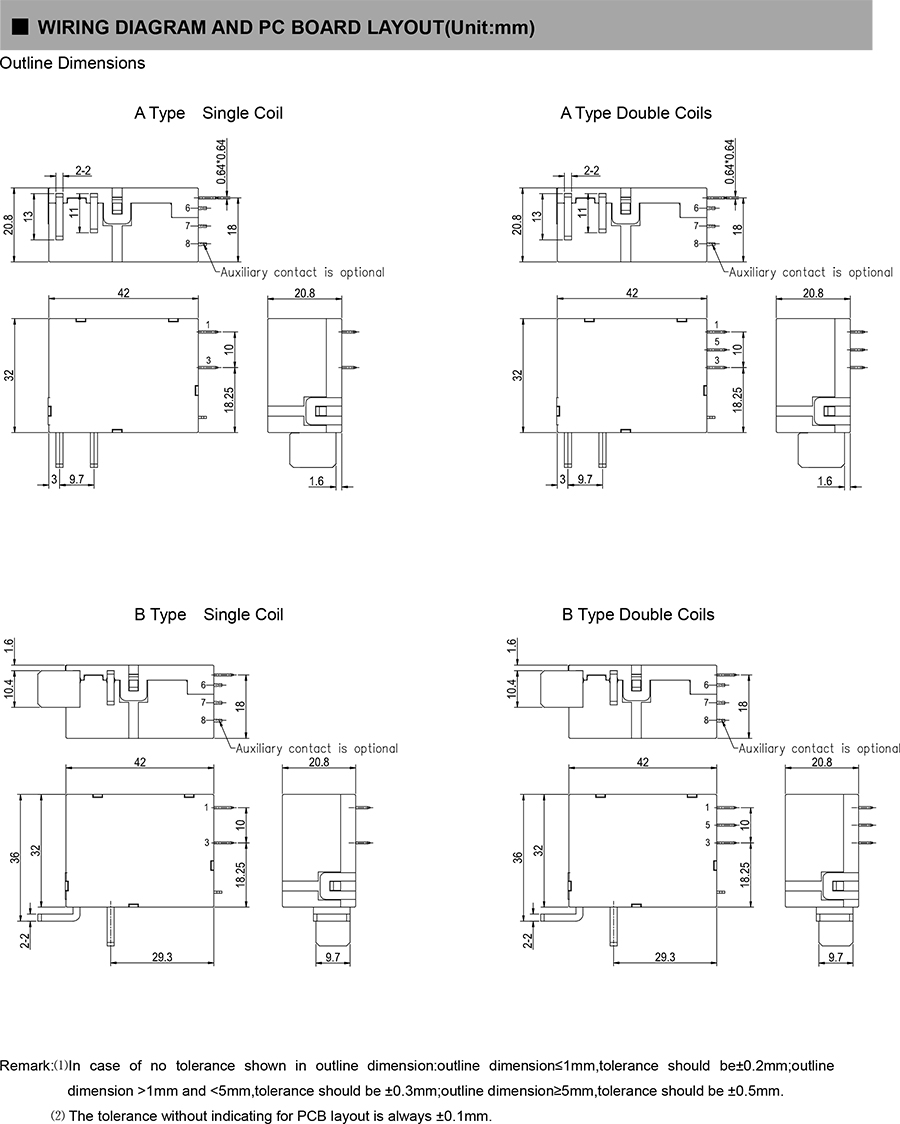

● Outline Dimensions:(42.0×32.0×20.8)mm
● Can be integrated design, convenient automatic installation and production
● Power frequency interference resistance, and good consistency
● Main application: smart meter, compound switch, Smart home, new energy
