Feature Description

●40A switching capability
●Breakdown voltage (between coil and contacts): 2.5KV
●The same side (H1) and the opposite side (H2) of
the quick connect terminal can be selected
●Plastic sealed and Flux proofed are optional

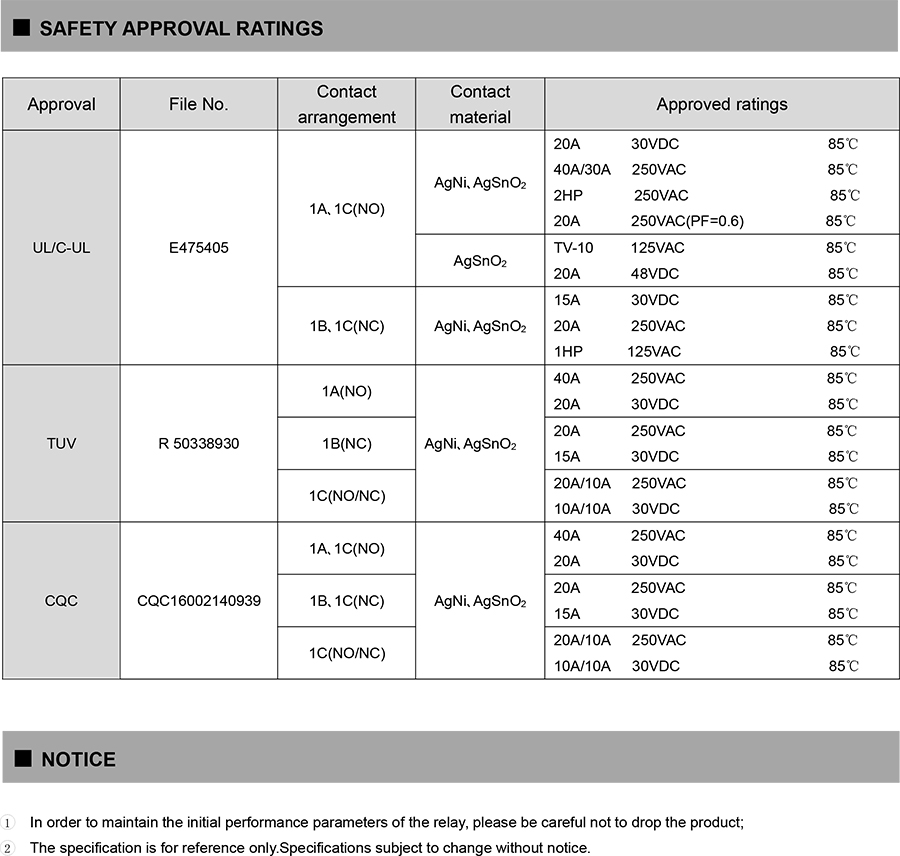

●UL insulation system:Class F
●Outline Dimensions: Low Type(32.0*27.0*18.9)mm
　　　　　　　　　　High Type(32.0*27.0*28.0)mm
●Main applications: Industrial control, Water heater
