Feature Description

● 4 sets of 40A main contacts+1 set of auxiliary contact
● When the main contact sticks,Auxiliary contacts meet the safety monitoring function (According to IEC61810-3)
● Contact gap :3.9mm(main contact) Auxiliary contact:Min0.5mm(When the main contact sticks)

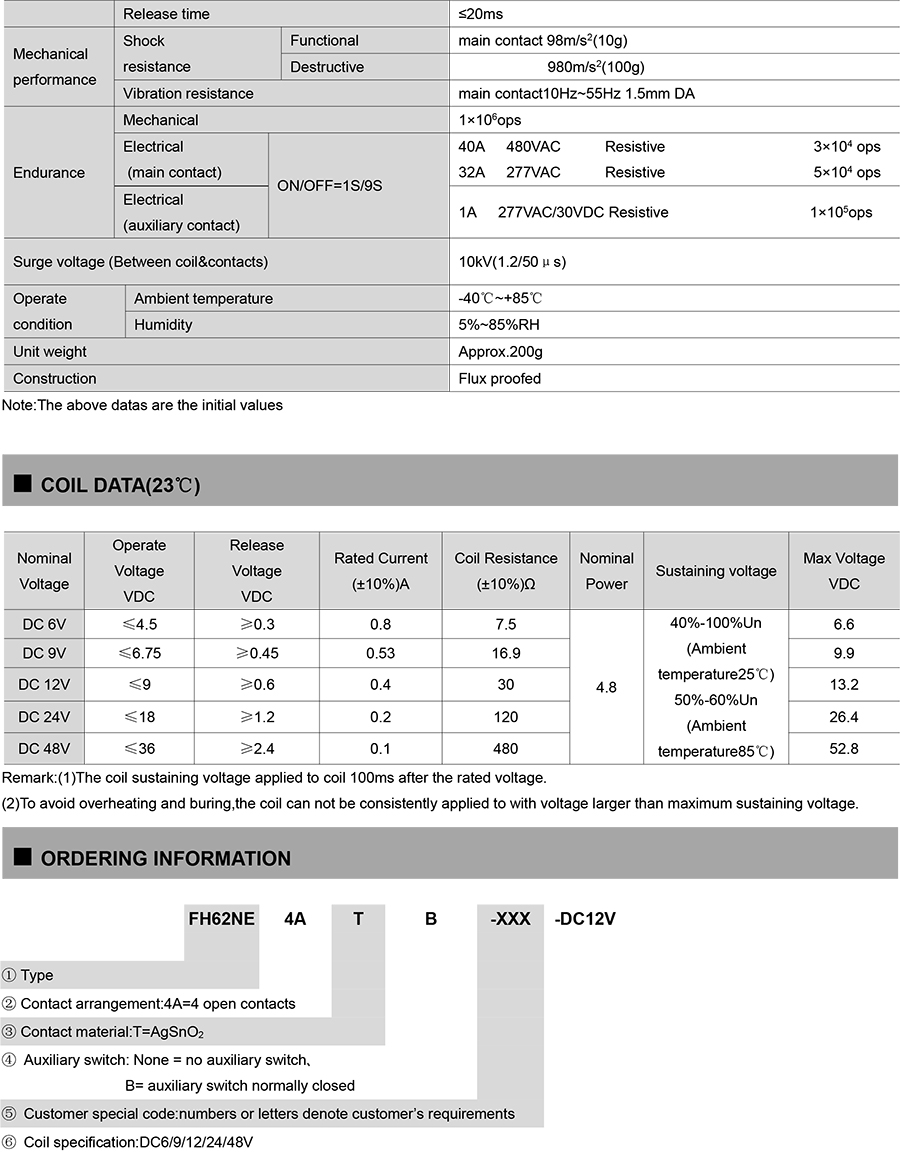

● Coil power is 4.8W
● UL insulation system:Class F
● Meet the 3KA short circuit current test of IEC 62955
● Creep distance:>8mm

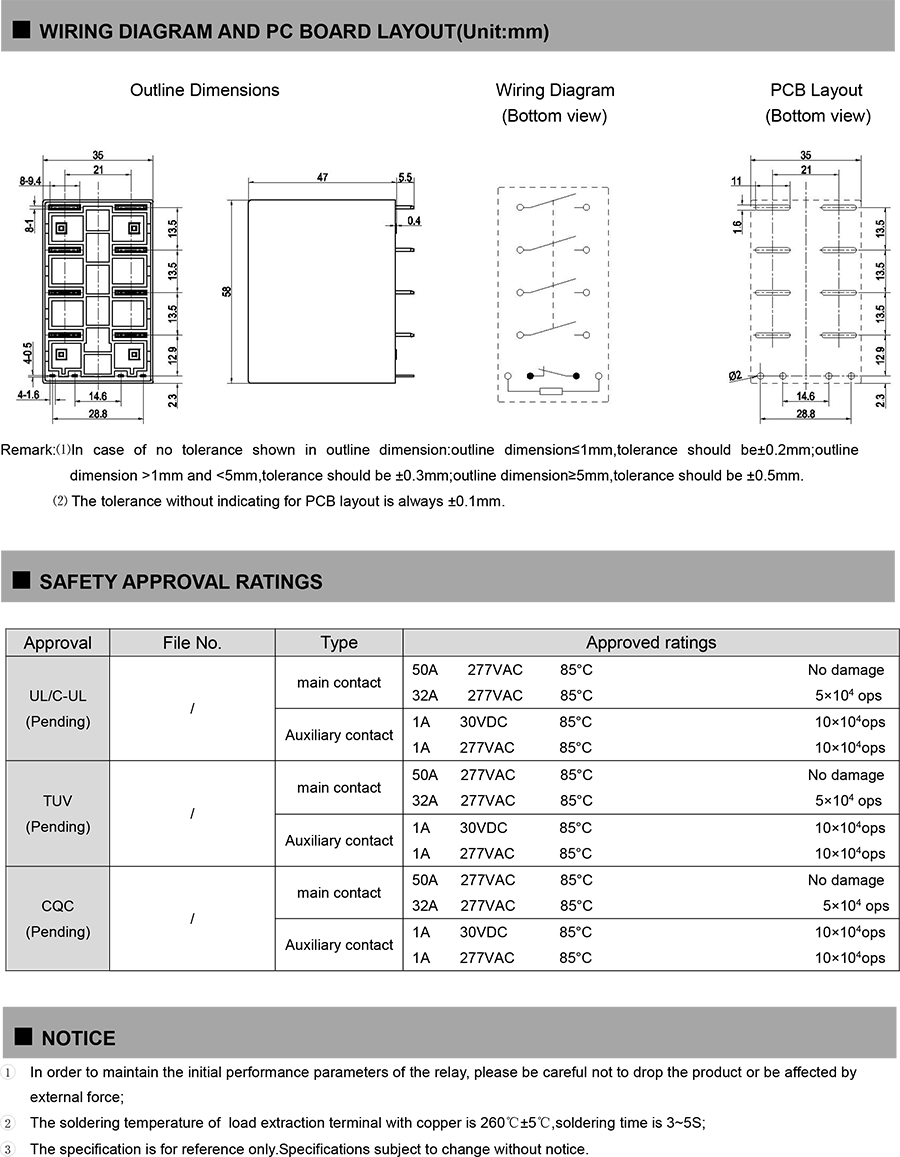

● Outline Dimensions:(58x35x47)mm
● Main applications: Inverter for solar photovoltaic power generation, AC charge spots
● The coil voltage applied to complete machine to save power loss
