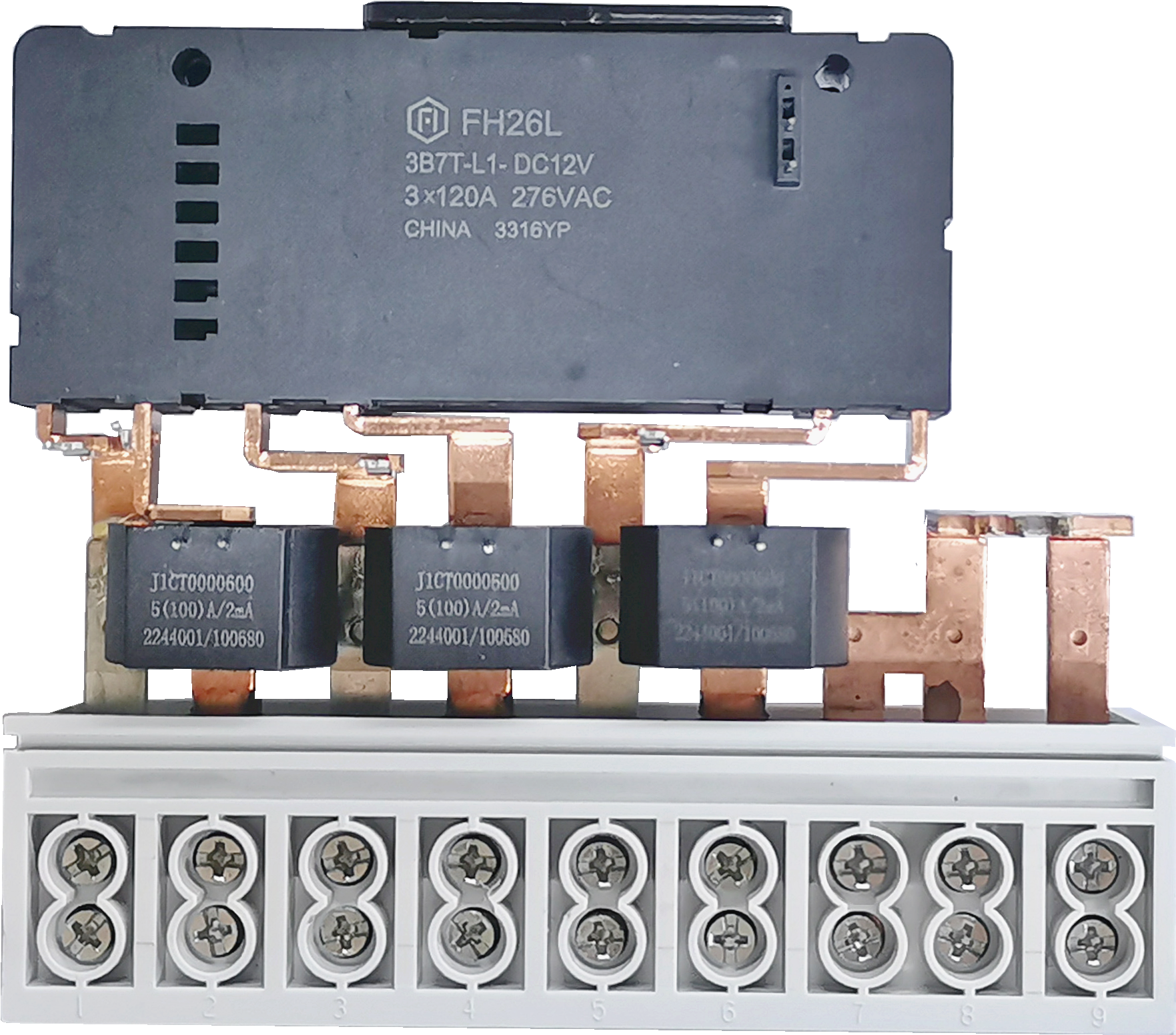

The FH26L Magnetic Latching Relay's features
1.High switching capability: 120A contact switching capability for high current environments.
current.
2. Flexible coil control: To suit different application requirements, single and double coil control options are available.
3.Customization Service: Depending on the requirements for the customer, external accessories such as transformers and manganese copper shunts can be altered.
4.High Dielectric Withstand Voltage: To ensure product safety, the dielectric withstand voltage between the coil and contacts reaches 4KV.
5.Anti-Interference Performance: Gives stable and strong defense of power frequency interference, ensuring steady operation in complex electromagnetic situations.
6.Sustainable Product: Guarantees environmental stability by adhering to RoHS standards.
Automated manufacture and installation are made accessible by integrated design.

Product Parameters
3A (three ordinarily open contacts) & 3B (three normally closed contacts) form a contact arrangement.
Rated Load: 120A 276VAC.
Insulation Resistance: 1000MΩ (500VDC).
Dielectric Withstand Voltage: Between open contacts 2000VAC for 1 minute; between contacts and coil 4000VAC for 1 minute.
Closing/Opening Time: Both not over 30ms.
Ambient Temperature: -40℃ to 85℃.
Humidity: 5% to 85%RH.

Application Range:

Compound switches, smart meters, and new energy fields every use regular use the FH26L magnetic latching relay, making it an ideal option for automated control and power systems.

Certification for International Safety
TÜV Rheinland tested the FH26L magnetic latching relay in line with EN 62052-31:2016 and IEC 62052-31:2015 standards, particularly clause UC4. This certification means that the FH26L relay has undergone rigorous testing and has been confirmed to meet the relevant safety and performance requirements. The certificate number is AK 50600130 0001, and the report number is CN2316PB 001.

Precautions
1. Factory State: Default closed state, but might be influenced by either transportation or installation impact, so a reset might be required before using.
2. Anti-Drop: do not drop the product or applying it to any kind of other external force to guarantee that it maintains its initial state.
3. Voltage Requirements: The excitation voltage must achieve its rated value. It is advised that the actual driving voltage be around two times the amount of the rated voltage, and that the pulse width be at least 100 ms.
4. Custom Product: While this is a custom product, attempt to reach Fanhar directly for specific technical support.

Choosing FH26L means choosing a stable and reliable power control solution.
