With the increasing development of automation control and intelligent technology, due to its excellent performance and reliability, the W15L magnetically held relay series has become an ideal option for smart home and industrial control.

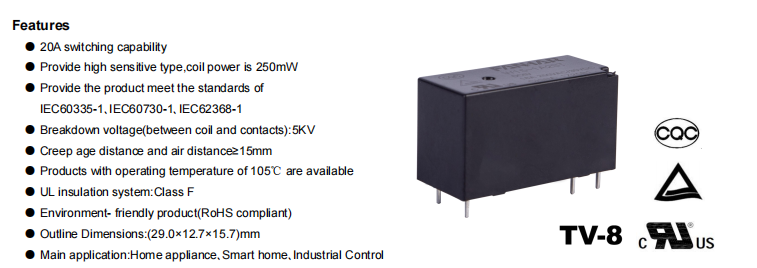

Product Features
High switching capacity: W15L provides a contact switching capacity of 20A, capable of handling larger current loads and meeting the needs of a wide range of industrial and commercial environments.
High Temperature Resistance: Capable of operating in ambient temperatures up to 105°C, the W15L exhibits excellent high temperature resistance.
Short-circuit inrush protection: the contacts are capable of withstanding a short-circuit inrush current of 750A at 10ms, providing additional safety for the circuit.
Manual control function: the contacts can be switched on and off by hand, increasing the flexibility and convenience of operation.
International standards compliance: in line with IEC60335-1, RoHS standard standards
Safety certification: with multiple safety certificates such as UL/C-UL, TÜV and CQC.

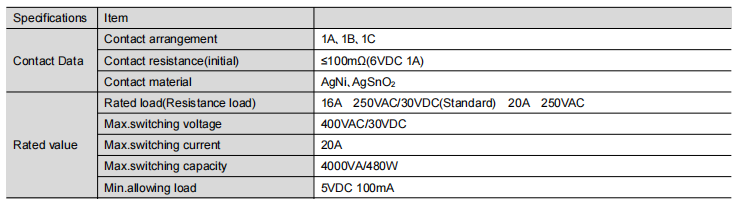

Product parameters
Contact form: 1A (1 set of normally open), 1B (1 set of normally closed), 1C (1 set of switching), to meet different application requirements.
Contact resistance: initial value not more than 50mΩ (6VDC 1A).
Contact material: AgSnO2, providing excellent conductivity and durability.
Rated load: control load (resistive) 20A 250VAC, standard product 16A 250VAC, maximum switching voltage 277VAC, maximum switching current 20A, maximum switching capacity 5000VA, minimum allowable load 5VDC 100mA.

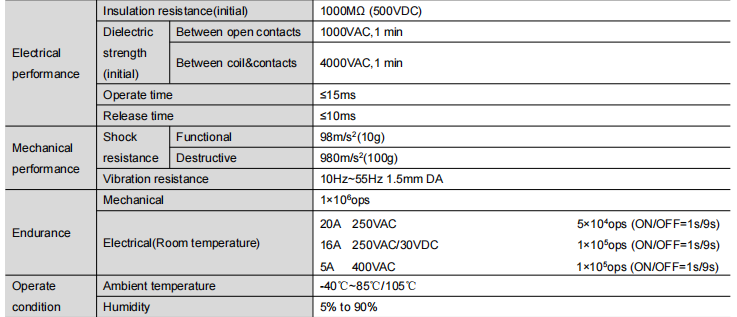

Performance Overview
Insulation resistance: Initial value up to 1000MΩ (500VDC), providing strong electrical isolation.
Dielectric withstand voltage: 1000VAC,1 minute between disconnecting contacts, 1A/1B between contacts and coil: 4000VAC,1 minute, 1C: 3000VAC,1 minute.
Action time: ≤15ms, reset time ≤15ms, ensuring fast response.
Mechanical performance: able to withstand up to 98m/s²(10G) stability and 980m/s²(100G) strength, as well as 10Hz～55Hz 1.5mm double amplitude vibration test.
Durability: Mechanical life up to 1 x 10^6 cycles, electrical life up to 5 x 10^4 cycles under specific conditions (ON/OFF = 1s/9s).
Scope of application
Smart home systems: for controlling lighting, HVAC and other smart devices in the home.
Industrial automation: to control motors and other mechanical devices on production lines.
Lighting Control: For automated control of commercial and public lighting systems.
Security Systems: To control the switching on and off of safety equipment in emergency situations.
Whether operating in extreme temperatures or in applications requiring short-circuit protection, the W15L provides a stable and safe solution.With its superior performance and safety approvals, the W15L magnetic retention relay is the preferred choice for smart home and industrial control. For more information or to inquire about customisation requirements, please contact Fanhar.
