As an ideal solution for smart homes and industrial control, latching retention relays are well-suited due to their outstanding performance and reliability, particularly in the context of advancing smart technologies. This paper will provide a brief introduction to the F14L details.

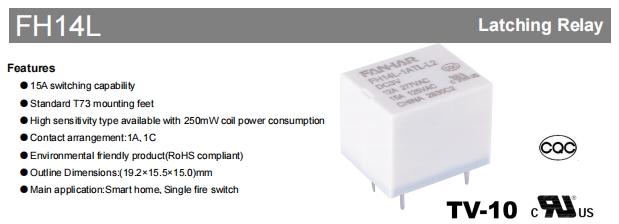

Product Features
High Contact Switching Capability: Up to 15A contact switching capability to handle larger current loads for a wide range of industrial and commercial environments.
High Temperature Resistance: Capable of operating in ambient temperatures up to 85°C
Short-circuit inrush protection: The contacts are capable of withstanding a short-circuit inrush current of 750A for 10ms, providing additional safety for the circuit.
Manual control function: The contact can be switched manually to increase the flexibility and convenience of operation.
Compliance with international standards: Comply with IEC60335-1, RoHS and other international standards.
Safety certificates: UL/C-UL, TÜV, CQC and other safety certificates.
Product parameters

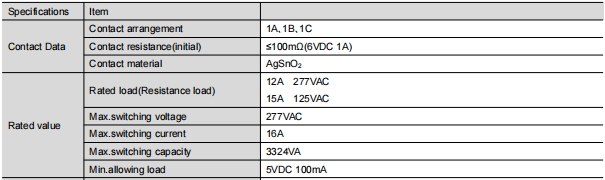

Contact form: 1A (a group of normally open), 1B (a group of normally closed), 1C (a group of switching), to meet different application requirements.
Contact resistance: Initial value does not exceed 100mΩ .
Contact material: AgSnO2, providing excellent conductivity and durability.
Rated load: Control load 12A 277VAC, standard product 15A 125VAC, max. switching voltage 277VAC, max. switching current 16A, max. switching capacity 3324VA, min. allowable load 5VDC 100mA.
Performance Overview

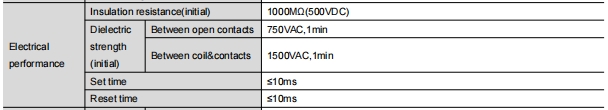

Insulation resistance: Initial value up to 1000MΩ (500VDC), providing strong electrical isolation.
Dielectric withstand voltage: 1000VAC between disconnected contacts, 1 minute, 1A/1B between contacts and coil:750VAC, 1 minute, 1C: 1500VAC, 1 minute.
Action time: ≤10ms, reset time ≤10ms, to ensure fast response.

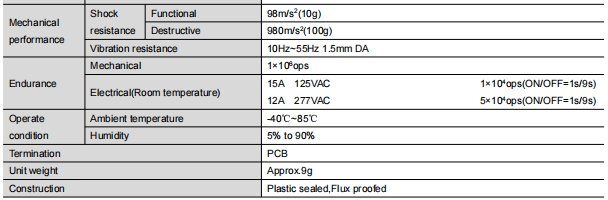

Mechanical performance: able to withstand up to 98m/s² (10G) stability and 980m/s² (100G) strength, and 10Hz ~ 55Hz 1.5mm double amplitude vibration test.
Durability: Mechanical life up to 1 x 10^6 cycles, electrical life up to 5 x 10^4 cycles under certain conditions (ON/OFF = 1s/9s).
Applications
Smart home systems: Control lighting, HVAC and other smart devices in the home.
Industrial automation: Control of motors and other mechanical equipment on production lines.
Lighting Control: Automated control of commercial and public lighting systems.
Security Systems: Controls the switching on and off of safety equipment in emergency situations.
Whether operating in extreme temperatures or in applications requiring short circuit protection, the FH14L provides a stable and safe solution. With its superior performance and safety approvals, the FH14L latching retention relay is the first choice for smart home and industrial control. For more information or to inquire about customisation requirements, please contact Zhejiang Fanhua Electronics Co.
