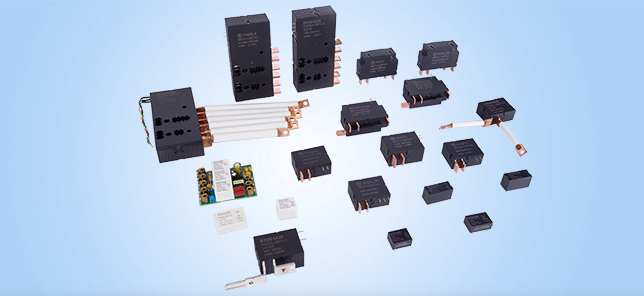

A power relay is a crucial gadget mainly used in electronic circuits for controlling high power circuits. The principal purpose of power relays includes the automation and remote control in circuits for safe and stable operations. You may select an appropriate power relay to make sure of the performance and reliability of your equipment; with this article, we are going to outline the types of relay and factors to consider in selecting the best component for your project.
Electromagnetic relays are a type of relay wherein a magnetic field developed through an electromagnetic coil is used to actuate a contact in the opening or closing of the circuit. Though cheaper, they have normally slower response times and can be susceptible to mechanical wear over time.
Solid State Relay: The solid state relays employ electronic elements, such as transistors and MOSFETs, for opening and closure of a circuit. Its merits are fast response, no mechanical wear, and long life; however, they usually bear a higher price.
Reed Relay: Reed relay is one type of relay that combines mechanical with electronic parts to accomplish control in a much more reliable way. They can be used where high reliability and long life are required.
Dimensions
It is important to ensure that the electrical performance of the relay is not compromised while meeting space requirements.
The mounting method and the available dimensions of the relay need to be specified first. In space-constrained or compact installations, smaller relays are more likely to help reduce heat build-up while optimising the component layout.
Voltage Rating
Power relays are typically available in 24V, 48V, 120V, or 240V voltage options, and different voltage ratings may exist on the contact side and coil side of the relay to accommodate the varying needs of the control and load circuits. The voltage rating of the relay must match the operating voltage of the equipment to ensure it is stable and safe in operation.
Switching Speed
The relay selection should be based on the required response speed for the specific application. High-frequency or fast-response applications, such as in medical devices or electrical control panels, demand high-performance relays. Conversely, low-frequency applications prioritize stability. Solid state relays (SSRs) are commonly used in such high-demand scenarios due to their quick switching speed and absence of mechanical wear.
Environmental Tolerance
Relays should be able to withstand the temperature, humidity and vibration of the environment in which they are intended to be used.
The performance of a relay is closely related to its operating environment. When selecting a model, the environmental conditions under which the equipment operates should be fully evaluated, e.g. temperature variations, humidity levels, corrosive media, vibration or shock.
Especially in harsh industrial environments (e.g. petrochemical, mining), relays need to be resistant to environmental disturbances in order to ensure reliable long-term operation.
Multi-Contact Functions
Multi-contact relays are capable of synchronised control of multiple circuits or accomplishing the choreography of complex operations.
By increasing the number of contacts, not only can the load be spread out, but the breaking capacity of the relay can also be increased. In scenarios where high loads are to be carried, relays can be connected in series to meet more stringent electrical requirements.
Mechanical relays are more flexible in terms of contact configurations, while solid state relays have a relatively limited number of contacts. Depending on the complexity of the equipment, it is important to select a relay with the appropriate type and number of contacts.
Mechanical Durability
The mechanical life of a relay directly affects the operational reliability and maintenance costs of the equipment.
Each switching of a relay wears out its contacts or parts. For equipment that requires frequent operation, it is critical to select relays with a high life expectancy.
Solid state relays have a long life and are maintenance free because they have no physical contacts, while traditional electromagnetic relays need to focus on their switching ratings to ensure that they meet the life cycle requirements of the equipment.
Inrush Current Capability
Inrush current is the maximum current that a relay can withstand instantaneously. Selection requires comparing the inrush current rating of the relay to the actual inrush demand of the equipment, with a margin to avoid damage or failure.
The inrush current capability of a relay determines its reliability under short-term overcurrent. In scenarios with complex load types or high starting currents, it is especially critical to select relays with high inrush tolerance.
The power rating of the relay should be higher or equal to the maximum load in the circuit. Load capacity is the maximum value of current and voltage that a relay can safely carry. Usage scenarios also affect the selection of relays, as different usage scenarios require different performance from relays.
Safety and reliability should be considered when selecting relays, which should comply with UL, CE and other relevant safety standards and certifications. Select high-quality relays that can maintain stable operation under extreme conditions to prevent electrical fires, short circuits and other accidents
Relays must be compatible with the load type and control system. For example, for AC loads, a relay that can handle AC power should be selected. For relays that need to interface with microcontrollers or other electronic systems, ensure compatibility of electrical characteristics and communication protocols.
Correct selection of the power relay means that the guarantee of your device working efficiently and safely will be ensured. From what type of relay to which is decided by the key parameter and actual use of matching, everything needs consideration comprehensively. By understanding the nature of the relay and application needs, you can select the most trustworthy solution for your equipment, thereby achieving long-term stable performance.
