Power relays play an indispensable role in modern industrial automation and precision control of household appliances. the FH12TP relay, carefully designed by Zhejiang Fanhua Electronics Co., Ltd, is ideal for industrial control, spot welders and power supply equipment due to its excellent performance and reliability. Below is the detailed introduction of FH12TP relay, bringing you a deeper understanding of its features and advantages.

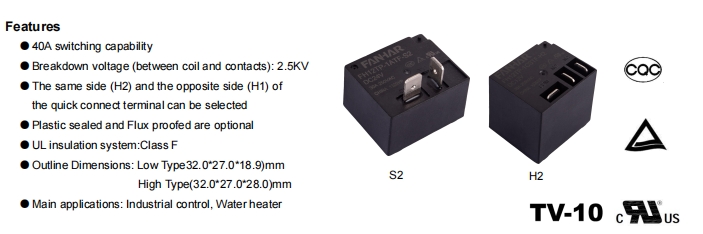

High switching capacity: The FH12TP can handle higher current loads to satisfy demanding industrial applications thanks to its switching capacity of up to 40A.
High Breakdown Voltage: Extreme safety and dependability are guaranteed by a 2.5KV breakdown voltage between the coil and contacts.
Sealing Options: Stable operation in a range of conditions is made possible by optional plastic sealing and anti-magnetic shielding configurations.

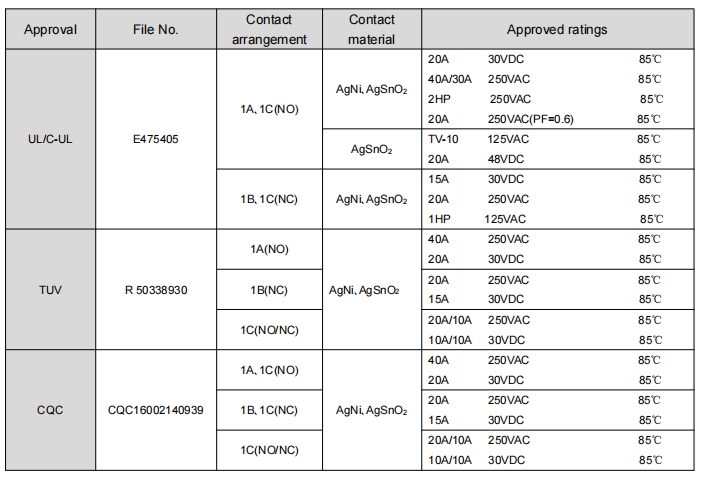

UL/C-UL certification: File No. E475405, covering contact arrangements for 1A, 1C (NO) and 1B, 1C (NC).
TUV Approval: R 50338930, covering contact arrangements for 1A (NO), 1B (NC), and 1C (NO/NC).
CQC Certification: CQC16002140939, which also covers 1A, 1C (NO), 1B, 1C (NC), and 1C (NO/NC) contact arrangements.
These certifications serve as proof not only of the high quality of FH12TP relays but also of their compliance with global market standards.

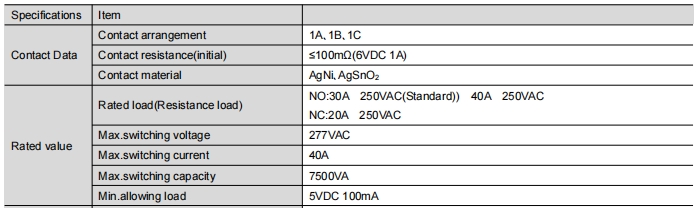

Contact form: 1A (one set of normally open), 1B (one set of normally closed), 1C (one set of changeover), designed to meet the needs of various applications.
Contact resistance: The initial value does not exceed 100mΩ (6VDC 1A).
Contact material: AgNi and AgSnO2, known for their good conduction and long service life.
Load ratings: Control load (resistive) NO: 30A 250VAC (standard), 40A 250VAC; NC: 20A 250VAC; Maximum switching voltage 277VAC; Maximum switching current 40A.

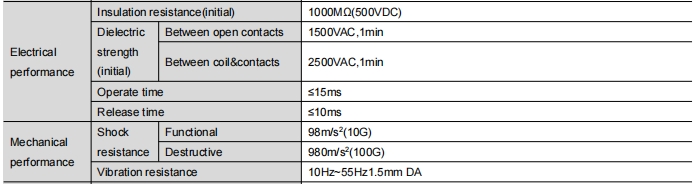

Insulation resistance: initial value up to 1000MΩ (500VDC), providing strong electrical isolation.
Dielectric withstand voltage: 1500VAC,1 minute between disconnecting contacts, 2500VAC,1 minute between coil and contacts.
Action time: operation time is no more than 15ms, release time is no more than 10ms, ensuring fast response.
Mechanical performance: able to withstand up to 98m/s² (10G) stability and 980m/s² (100G) strength, as well as 10Hz ~ 55Hz 1.5mm double amplitude vibration test.
Durability: mechanical life up to 1 x 10^6 operations, electrical life up to 5 x 10^4 operations under specific conditions (ON/OFF = 1s/9s).
Industrial control: control of motors and other mechanical equipment on production lines.
Spot Welding Machines: Provides stable current control during the welding process.
Power supply equipment: providing efficient current switching in power management.
With its excellent performance and wide range of applications, the FH12TP power relay is the first choice for industrial control and power supply equipment.The FH12TP offers a reliable and secure solution whether used in applications demanding high current switching or in extremely hot or cold environments. To find out more about the FH12TP, get in touch with Zhejiang Fanhua Electronics Co., Ltd. right now. Our knowledgeable staff will assist you in choosing the relay type that best fits your needs. Let's work together to create an industrial automation future that is more dependable and efficient.
