FH31L-100 Electric Latching Relay
Views: 743  Author: Fanhar Relay  Time: 2025.06.03

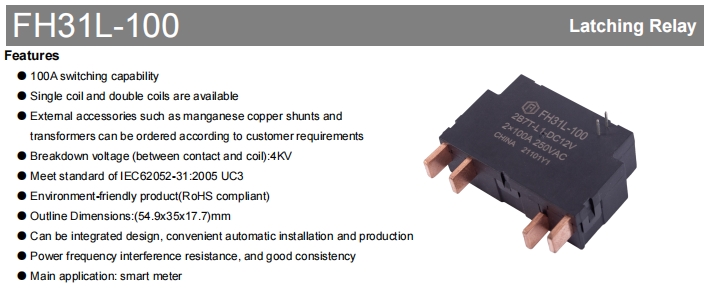

The FH31L-100 is a high performance electric latching relay designed for application scenarios such as smart meters that require high reliability, long life and low power consumption. Manufactured with environmentally friendly materials, this relay is RoHS compliant and ISO9001 and ISO14001 certified for reliable quality.





Core Features


High-current switching capability: Supports switching currents up to 100A to meet high load requirements.

Dual configurations available: single-coil and dual-coil electric latching relay structures are available to suit different application scenarios.

Excellent electrical performance: contact resistance ≤ 1.0mΩ, insulation resistance 1000MΩ (500VDC).

Long life design: mechanical life up to 100,000 times, electrical life in accordance with IEC62055-31 standard.

Wide working environment: Adaptable to -40℃~85℃ temperature range and 5%~85%RH humidity environment.

Compact size: only 54.9×35×17.7mm, easy to integrate and design.

Strong anti-interference: excellent anti-work frequency interference ability and good consistency

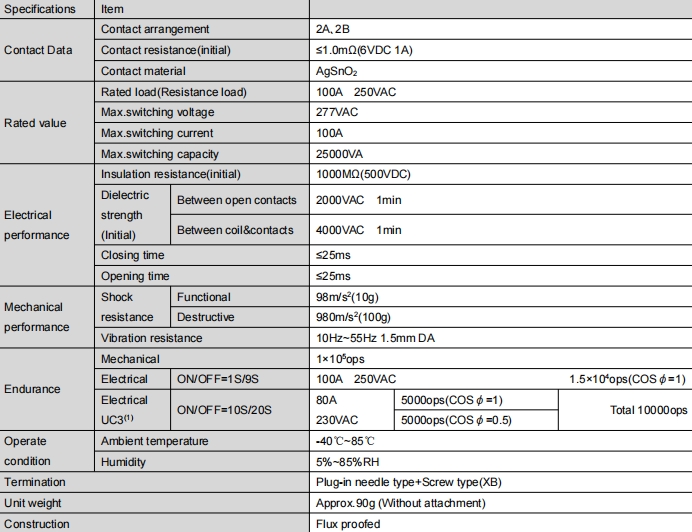

Technical Specifications


Contact parameters

Contact configuration: 2A (2 normally open) or 2B (2 normally closed) optional

Contact material: AgSnO₂ (environmental protection silver tin oxide)

Rated load: 100A 250VAC (resistive load)

Maximum switching voltage: 277VAC

Maximum switching capacity: 25000VA


Electrical Characteristics

Action time: ≤25ms (closing/disconnecting)

Dielectric withstand voltage: 2000VAC between contacts for 1 minute, 4000VAC between contacts and coil

Shock resistance: Functional type 980m/s²(100g)

Vibration resistance: 10Hz~55Hz 1.5mm double amplitude

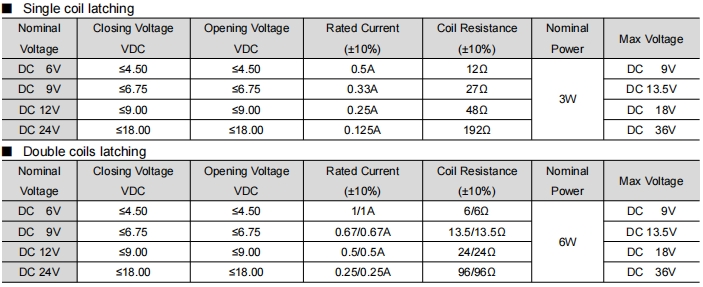

Coil parameters



Fields of application


The FH31L-100 relay is particularly suitable for:

Smart meters and energy management systems

Automatic Meter Reading (AMR) systems

Prepaid meters

Remote control switching devices

Power control devices that require low-power hold


Product Advantages


Energy saving and environmental protection: the magnetic hold design requires power only when switching, and the hold state does not consume power.

High reliability: dust-proof structure design and strong oxidation resistance of contact materials.

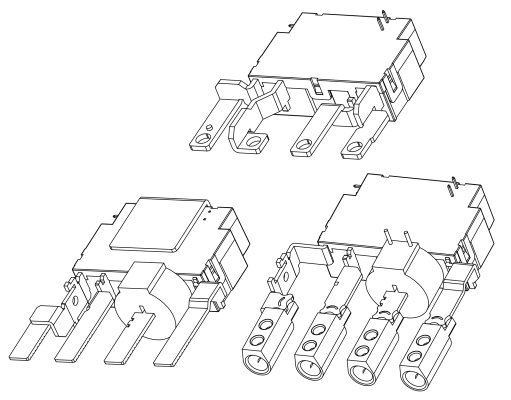

Convenient installation: pin + screw terminal (XB) hybrid connection, support automated installation

Flexible customization: Manganese copper shunt, transformer and other accessories can be provided according to customers' requirements.

Compatible with IEC62052-31:2005 UC3 standard.


Precautions for use


Recommended driving voltage is 1~1.5 times of rated voltage, pulse width ≥100ms.

Avoid energizing the “ON” and “OFF” coils at the same time, and avoid prolonged energization (more than 1 minute).

Load terminals are not suitable for reflow, wave or tin soldering, spot soldering is recommended.

The state of the relay may be changed during transportation or installation, please reset it as needed before use.

Avoid dropping the product or being affected by external force to maintain the initial performance parameters.



Quality Assurance


FH31L-100 relay is manufactured by FANHAR, the company has a perfect quality management system, the products have been strictly tested to ensure that each relay can work stably in a variety of harsh environments.Please feel free to contact our technical staff with any questions; we offer expert technical support and after-sales service.

 For dependable and effective solutions for your power control and smart meter applications, go with the FH31L-100 Magnetic Retaining Relay!
