Feature Description

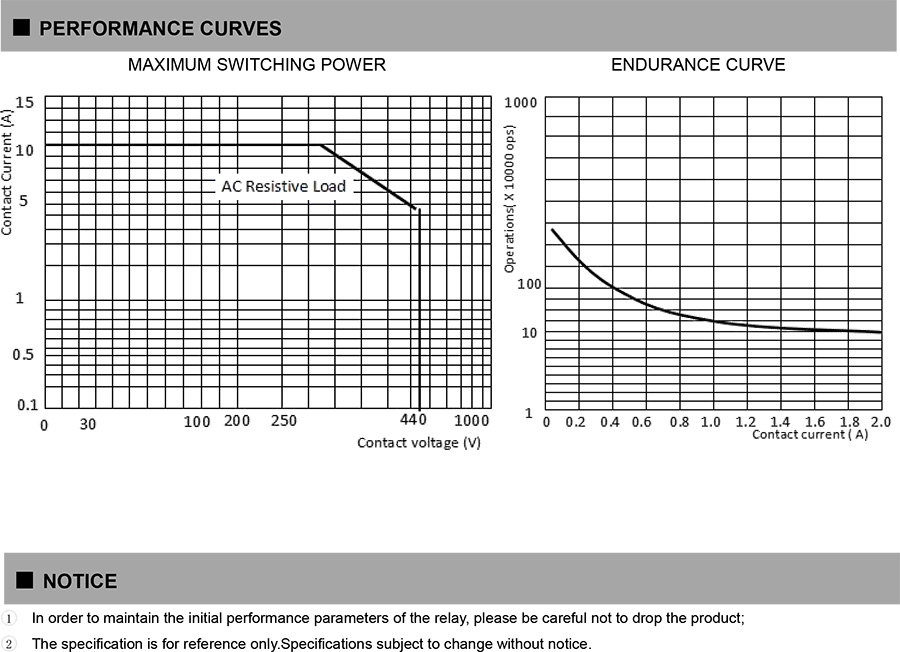

● 10A switching capability
● Low height, only 12.5 mm
● The creepage distance between the coil and the contact with a dielectric withstanding voltage of 4kV is more than 8mm
● Products conforming to IEC60335-1 standard are available
● Various contact types are available
● A variety of sockets are available
● UL insulation system:Class F
● Through-hole reflow specification products are available

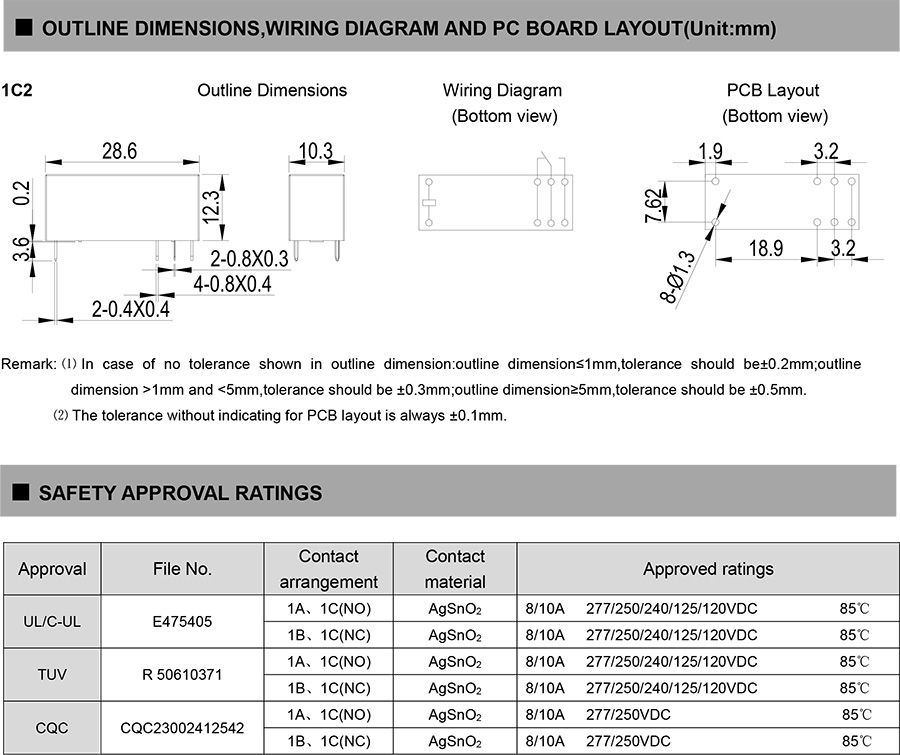

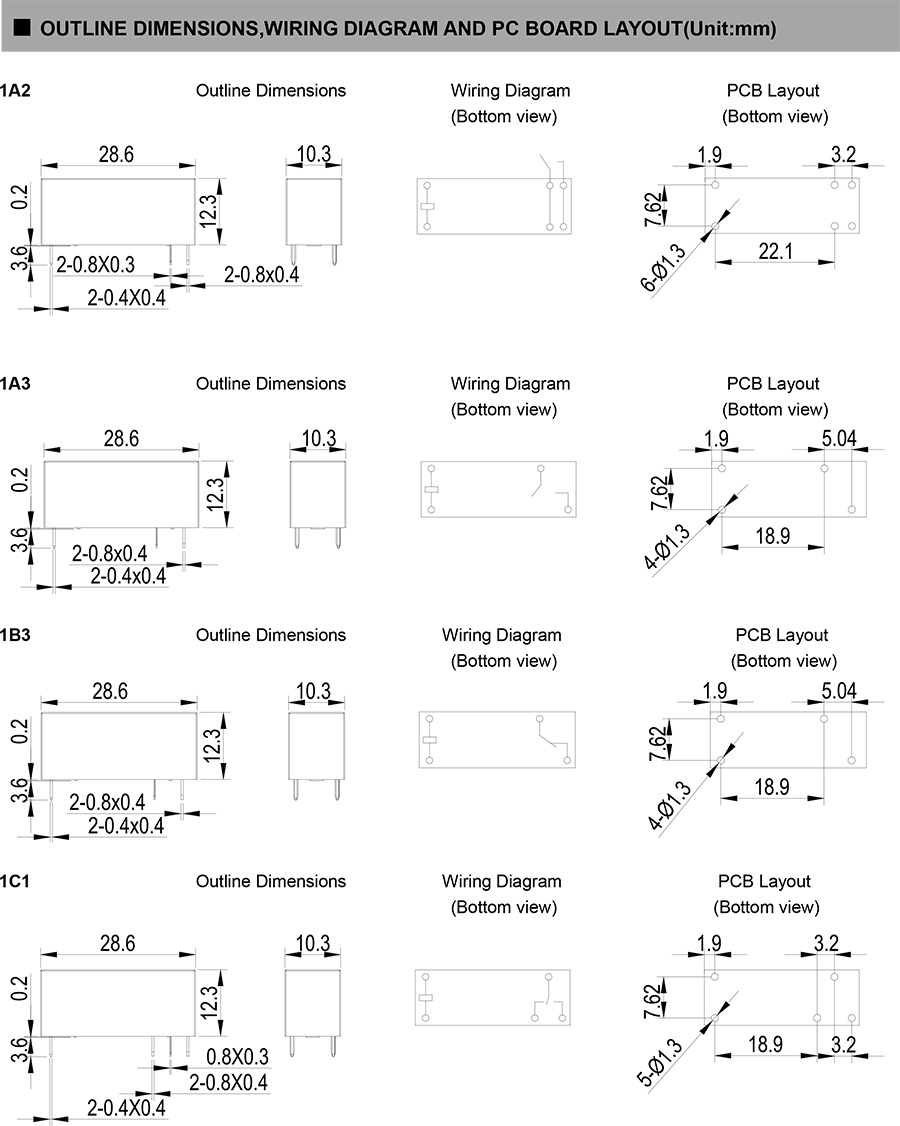

● Outline Dimensions:(28.6×10.3×12.3)mm
